FLAT RING TERMINAL
COPPER CHIMNEY - DOUBLE WALL INSULATED
ISO25 COPPER SYSTEM

Iso25 Rame is the double wall flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for installations in outdoor environments which combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.

It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or gas boilers condensation, etc.).
The entire ISO 25 Copper line is certified according to European regulation EN-1856-1:2009 and is guaranteed for 10 years

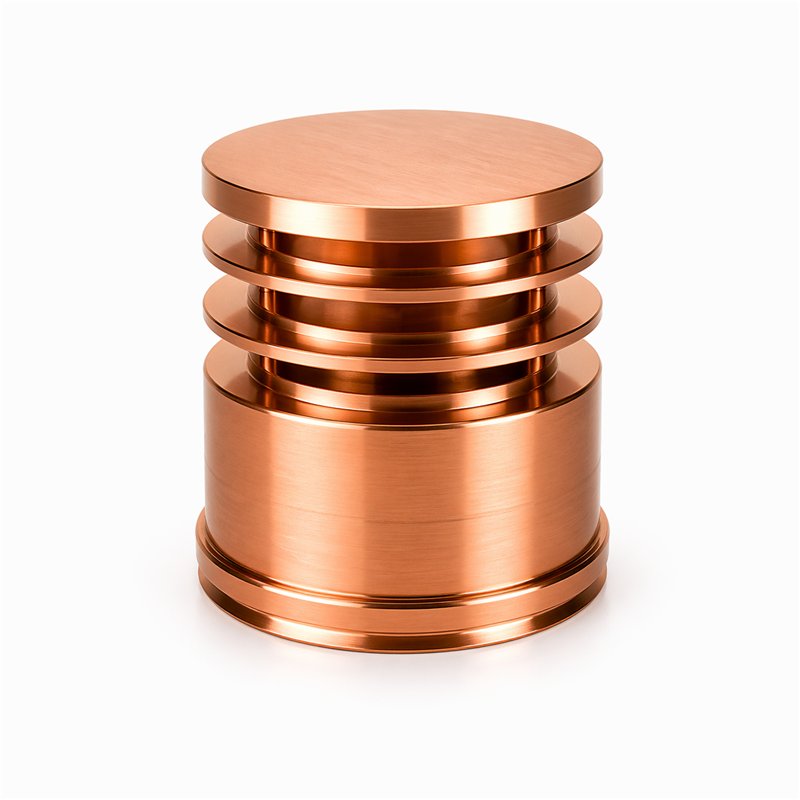

The ring cap is the terminal of the flue with a more pleasant aesthetic and functionality comparable to the much more voluminous anti-backflow cap

Designation: Chimney system EN 1856-1:2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in NATURAL COPPER

Material delivery terms: 1 week

Certification: KIWA

Warranty: 10 Years
