Description

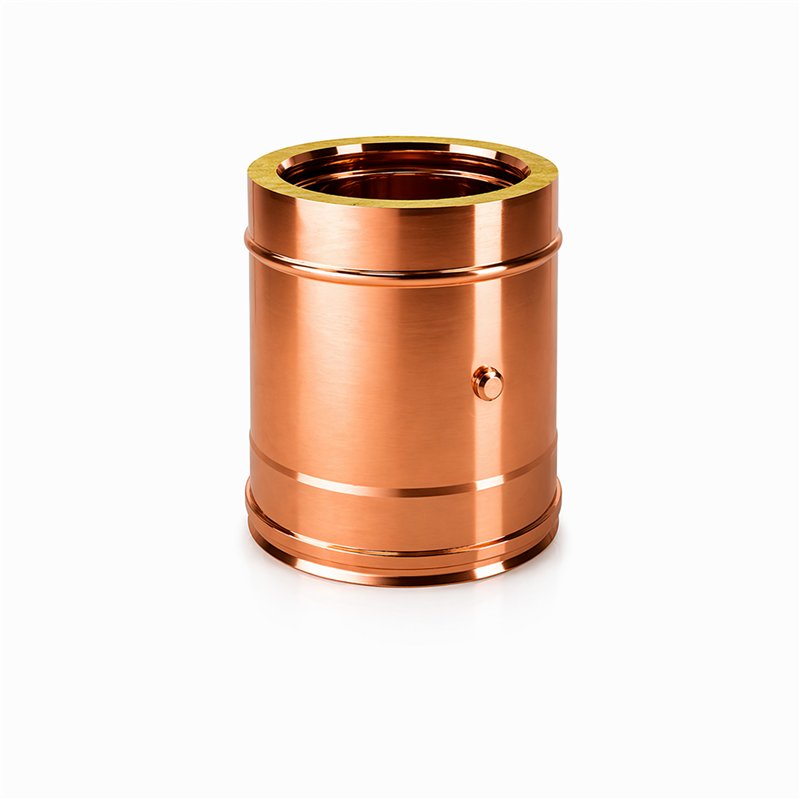

SMOKE DETECTION MODULE
COPPER CHIMNEY - DOUBLE INSULATED WALL
ISO25 COPPER SYSTEM

Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.It can be combined with any type of generator with maximum operating pressure at 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or condensing gas boilers, etc.).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The smoke detection module, required by the UNI 10640 and UNI 10641 standards, is used for the analysis and control of the smoke temperature and the detection of the combustion efficiency

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER

  Cod. Øi Øe Hu I
Rame Naturale R2PF80 80 130 195 45
Rame Naturale R2PF100 100 150 195 45
Rame Naturale R2PF130 130 180 195 45
Rame Naturale R2PF150 150 200 195 45
Rame Naturale R2PF180 180 230 195 45
Rame Naturale R2PF200 200 250 195 45
Rame Naturale R2PF250 250 300 195 45
Rame Naturale R2PF300 300 350 195 45
Rame Naturale R2PF350 350 400 195 45
Rame Naturale R2PF400 400 450 195 45
Rame Naturale R2PF450 450 500 195 45
Rame Naturale R2PF500 500 550 195 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni



Product Details
R2PF80

Specific References

MPN
R2PF
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
