Description

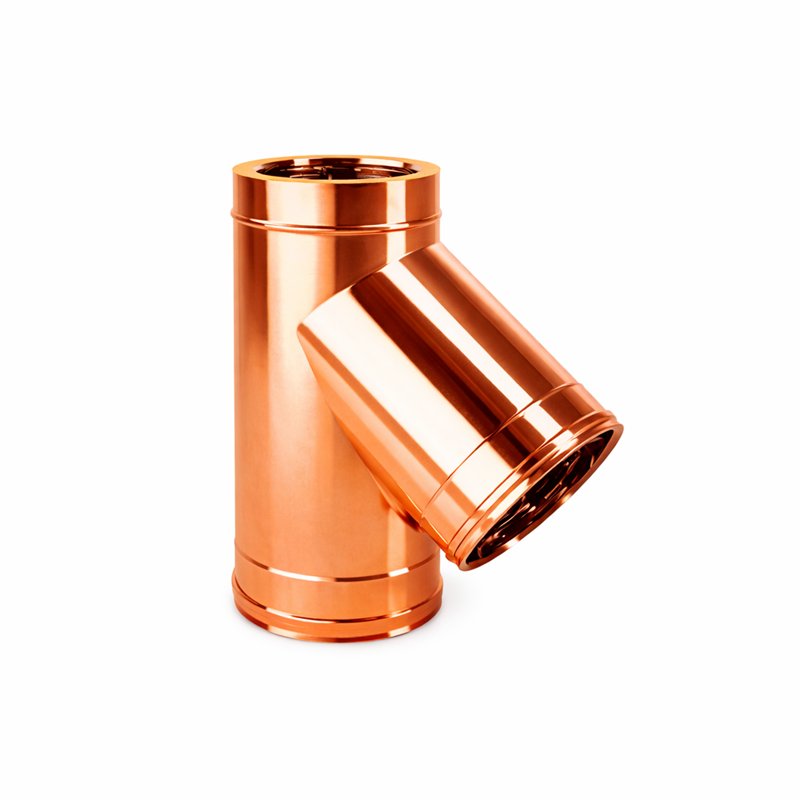

135 ° (45 °) BRAGA T-FITTING
COPPER CHIMNEY - DOUBLE INSULATED WALL
ISO25 COPPER

Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The whole ISO 25 Copper line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

The 45 ° T fitting allows the connection between the vertical flue and the horizontal smoke channel; the 45 ° inclination considerably reduces the flow resistance, improving efficiency.
The horizontal connection is in double wall system with MALE connection
Not suitable for combination with condensing generators

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER


 Cod.ØiØeABCHuI
Rame NaturaleR2T480801302651877531545
Rame NaturaleR2T41001001502751947533545
Rame NaturaleR2T41301301803152238038545
Rame NaturaleR2T41501502003302338540545
Rame NaturaleR2T41801802303902769045545
Rame NaturaleR2T420020025041529310049545
Rame NaturaleR2T425025030047533610554545
Rame NaturaleR2T430030035052036811562545
Rame NaturaleR2T435035040063044514576545
Rame NaturaleR2T440040045069048817084545
Rame NaturaleR2T445045050075553417591545
Rame NaturaleR2T450050055081557618094545

Garanzia: 10 Anni

Termini consegna materiale : 1 settimana

Certificazione : KIWA
