De Marinis copper flue adjustable wall support bracket
  • De Marinis copper flue adjustable wall support bracket
  • De Marinis copper flue adjustable wall support bracket

De Marinis copper flue adjustable wall support bracket

CUSM100
De Marinis

De Marinis copper flue adjustable wall support bracket

Diametro
€34.40
€27.52Save 20%
Made to order - no returns or exchanges possible on this product
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description
WALL BAND
COPPER CHIMNEY
COPPER ISO SYSTEM


Iso Rame is the double wall flue system with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.


The whole ISO Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

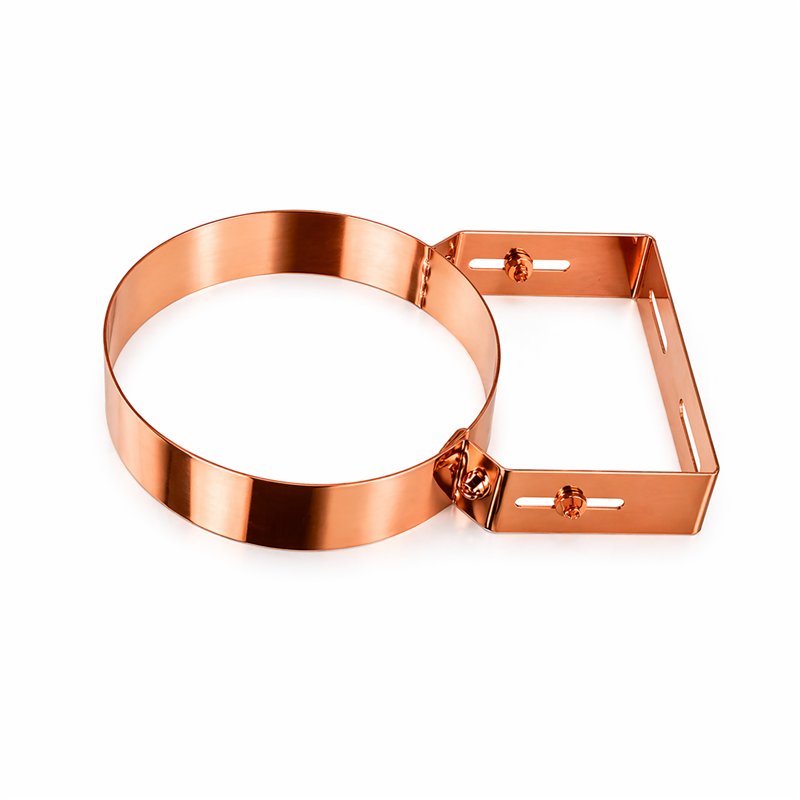

The wall clamp is used to anchor the flue to the wall. It allows correct anchoring and positioning of the wall system thanks to the adjustment on the three axes. It has no bearing function.

The bracket can be extended with the article CUCPR50 / CUCPR100

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: NATURAL COPPER


  Cod. Øn A B Y
Rame CUSM100 100 110 50 50-70
Rame CUSM120 120 130 50 50-70
Rame CUSM130 130 140 50 50-70
Rame CUSM150 150 160 50 50-70
Rame CUSM180 180 160 50 50-70
Rame CUSM200 200 180 50 50-70
Rame CUSM220 220 180 50 50-70
Rame CUSM230 230 180 50 50-70
Rame CUSM250 250 200 50 50-70
Rame CUSM270 270 200 50 50-70
Rame CUSM280 280 200 50 50-70
Rame CUSM300 300 250 50 50-70
Rame CUSM350 350 250 50 50-70
Rame CUSM400 400 300 50 50-70
Rame CUSM450 450 380 100 50-70
Rame CUSM500 500 380 100 50-70
Rame CUSM550 550 400 100 50-70
Rame CUSM600 600 450 100 50-70
Rame CUSM650 650 500 100 50-70
Rame CUSM700 700 550 100 50-70
Rame CUSM750 750 600 100 50-70

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni

Product Details
CUSM100

Specific References

ean13
2002001969803
MPN
CUSM
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
