WALL BAND
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 RUSTY SYSTEM
Iso25 RUSTY is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in galvanized sheet metal with oxidized copper effect; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The whole ISO 25 INOX line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

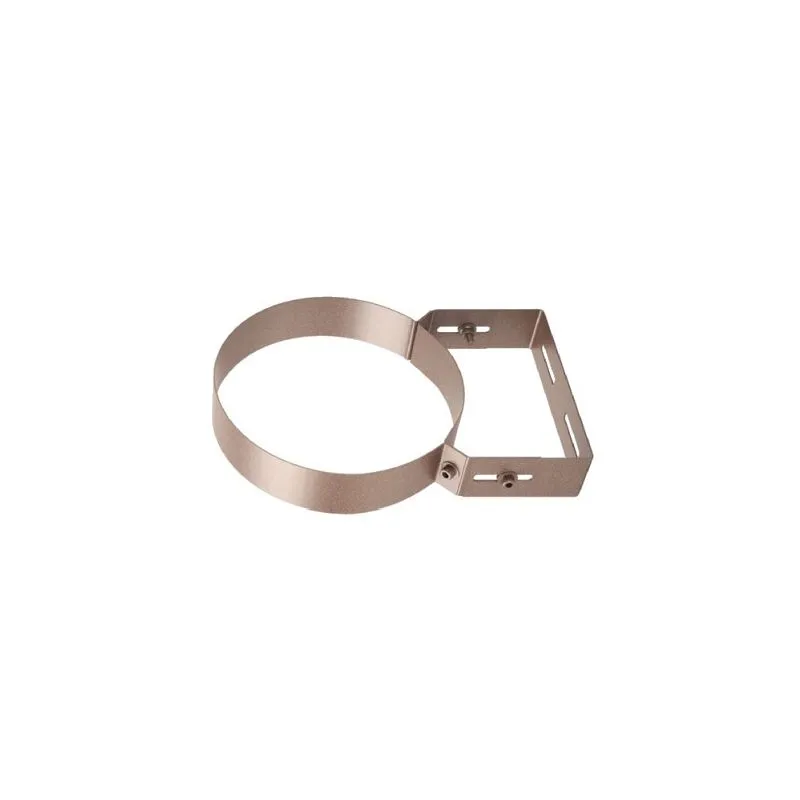

The wall clamp is used to anchor the flue to the wall. It allows correct anchoring and positioning of the wall system thanks to the adjustment on the three axes. It has no bearing function.
Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in galvanized sheet metal with oxidized copper effect
