CHINESE TYPE WEATHER HAT
STAINLESS STEEL CHIMNEY - INSULATED DOUBLE WALL
RUSTY ISO 10 SYSTEM

Iso10 RUSTY is the double-walled flue system insulated with 10mm high-density mineral wool, with an internal wall in AISI 316 stainless steel and an external wall in RUSTY-effect painted GALVANIZED steel or MATT BLACK or HAMMERED COPPER; the ideal choice for outdoor installations which combines product quality, efficiency, durability and above all reduced dimensions

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The entire ISO 10 line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years

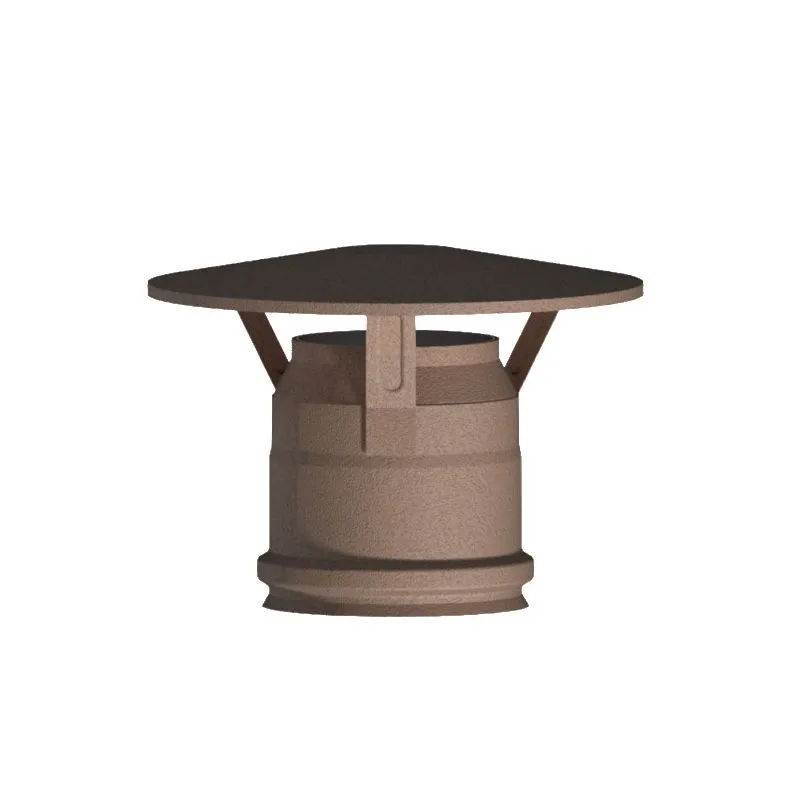

The Chinese cap  is the terminal of the flue and prevents the entry of rain or snow

Low flow resistance, indicated in combination with generators with operating pressures lower than 40 Pa

Designation: Chimney system EN 1856-1:2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel th. 0,4- External wall in painted steel

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
