END CAP WITH FLAT FINS
STAINLESS STEEL FLUE - DOUBLE INSULATED WALL
ISO25 RUSTY SYSTEM

Iso25 RUSTY is the double wall flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in galvanized sheet metal with oxidized copper effect; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc ..).
The whole ISO 25 INOX line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

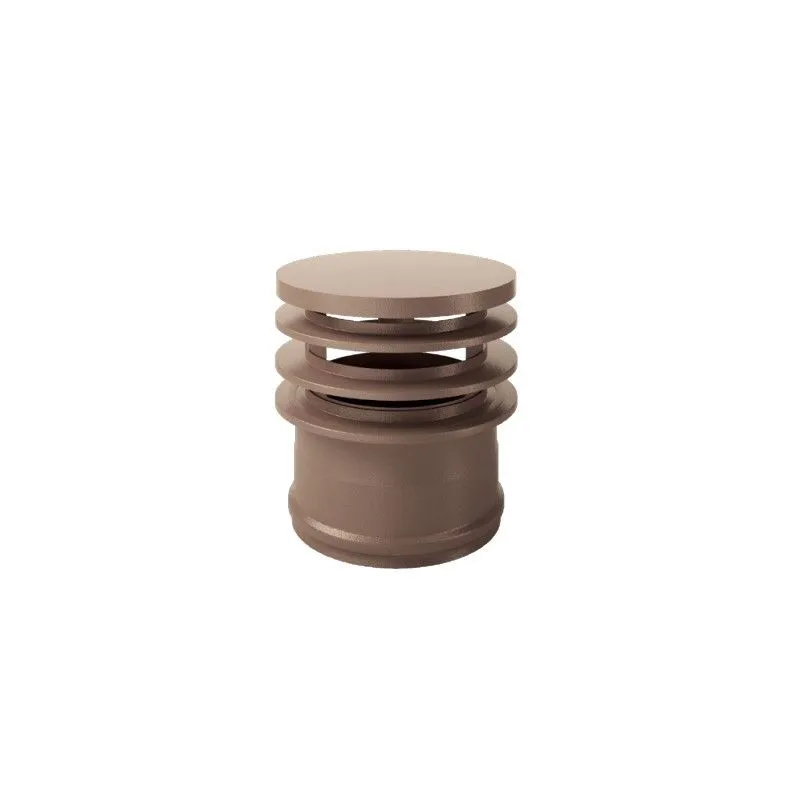

The ring terminal cap is the terminal of the flue with intermediate flow resistance, but with a reduced external diameter and pleasant aesthetics

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Type of material: Internal wall in Aisi 316 stainless steel - External wall in galvanized sheet metal with oxidized copper effect

Warranty: 2 Years

Delivery terms: 1 week

Certification: KIWA
