SLOPED FLUE WITH LEAD BASE
STAINLESS STEEL FLUE
PAINTED COLLAR

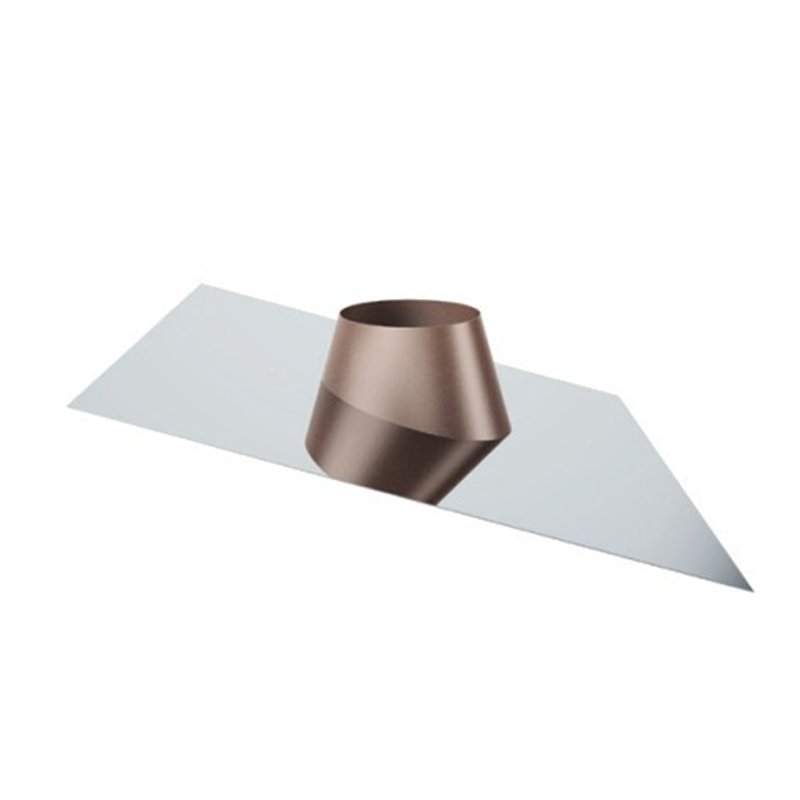

SLOPED FLUE in painted GALVANIZED sheet metal; the ideal choice for outdoor installations that combines product quality, efficiency and durability
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures of up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or condensing gas boilers, etc.).
The entire ISO 25 INOX line is certified according to European standard EN-1856-1:2009 and is guaranteed for 10 years

The slope for pitched roofs is positioned on the roof by placing the base under the tiles, for roofs with a slope from 5° to 30°

Designation: Chimney system EN 1856-1:2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: MALLEABLE LEAD base - External wall in painted galvanized sheet metal

Warranty: 2 Years

Material delivery terms:
1 week for Rusty
20 days for Hammered Copper and Matt Black

Certification: KIWA
