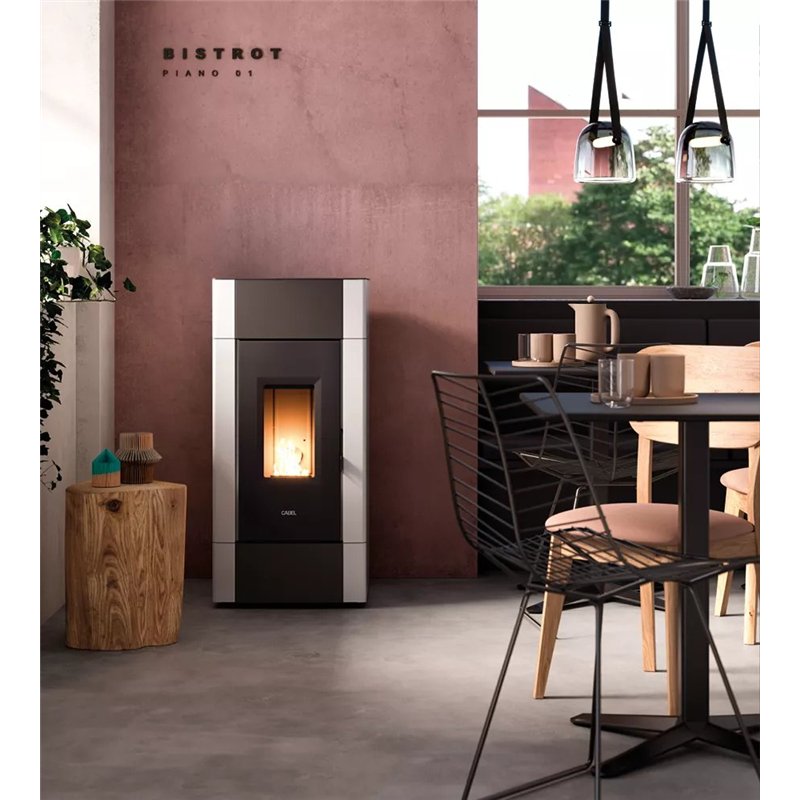

The CADEL Cristal 9 is an 8.5 kW ventilated pellet stove, ideal for rooms up to 238 m³. It features a sealed chamber, cast iron brazier and door, Wi-Fi/Bluetooth connectivity, and Flexit technology for flexible flue gas exhaust. It boasts an elegant design and high performance, 4-star certification, and is compatible with the Conto Termico (thermal energy consumption account).
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
The Cristal 9 by CADEL is a pellet stove designed for those seeking power, versatility, and design in a single product. With a nominal power of 8.5 kW, it is perfect for heating rooms up to 238 m³, ensuring constant thermal comfort and optimized energy consumption.
Its modern design is enhanced by the diamond-cut cast iron door and a wide selection of finishes (White, Red, Anthracite), making it suitable for any home style. The Shield sealed chamber and cast iron brazier ensure safe and long-lasting combustion.
Flexit technology allows for greater installation flexibility, thanks to the option of rear or top flue outlet. Front ventilation distributes heat evenly, while Comfort Mode reduces ventilation for quiet operation.
The Cristal 9 is equipped with built-in Wi-Fi and Bluetooth for remote management via an app, with daily and weekly programming. The 17 kg tank guarantees up to 28 hours of autonomy, with consumption between 0.6 and 2 kg/h.
Certified 4 stars under Ministerial Decree 186, compliant with Ecodesign and CE regulations, it is eligible for the Conto Termico (Thermal Account) scheme, with the possibility of reimbursement of up to 65% for the replacement of existing systems.
Technical characteristics
| Potenza termica nominale | 8,5 kW |
| Potenza al focolare | 9,5 kW |
| Potenza ridotta | 2,5 kW |
| Volume riscaldabile | 70–238 m³ |
| Superficie riscaldabile | 26–88 m² |
| Capacità serbatoio | 17 kg |
| Autonomia | 8–28 ore |
| Consumo pellet | 0,6–2,0 kg/h |
| Rendimento nominale | 89% |
| Rendimento ridotto | 90% |
| Scarico fumi | Ø 80 mm (posteriore, superiore opzionale) |
| Presa aria comburente | Ø 60 mm |
| Peso netto | 70 kg |
| Combustibile | Pellet Ø 6 mm |
| Classe energetica | A+ |
| Certificazioni | 4 stelle D.M. 186, CE, Ecodesign, Conto Termico |
| Funzioni smart | Wi-Fi e Bluetooth integrati |
| Modalità silenziosa | Comfort Mode |
| Tipo di ventilazione | Aria frontale |
| Braciere | Ghisa |
| Camera di combustione | Stagna Shield |
| Porta | Ghisa diamantata |
| Telecomando | Opzionale |
| Collegamento termostato esterno | Sì |
| Tecnologia installazione | Flexit |
Classe Energetica: A+
Certificazione EcoDesign 2022
