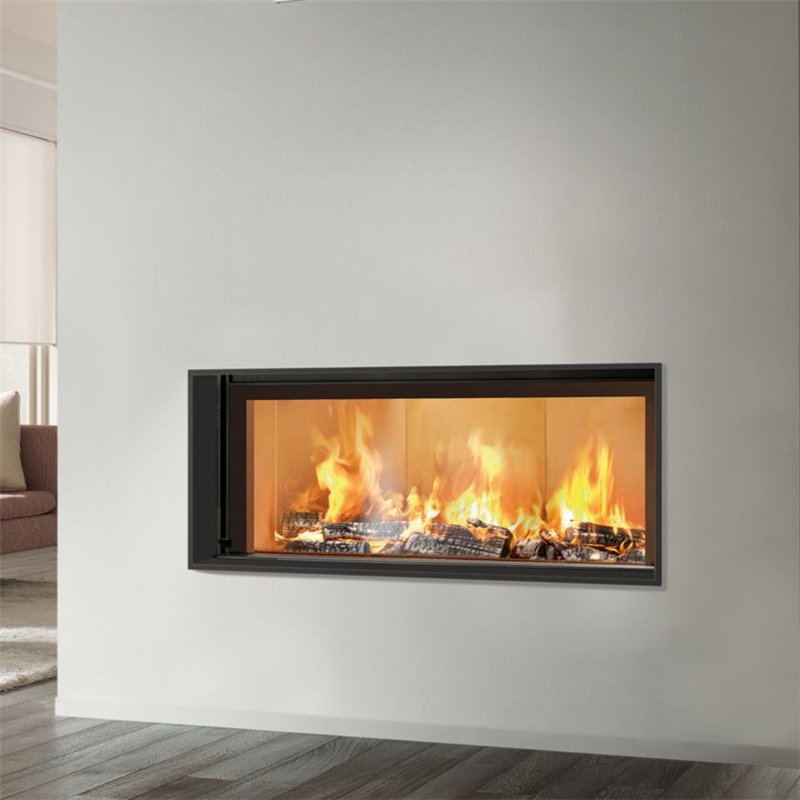

Caminetti Montegrappa LIGHT 06N 134x48 15 kW Natural Convection Wood-Burning Fireplace

The Caminetti Montegrappa LIGHT 06N is an extra-large front wood-burning fireplace with natural convection, characterised by a wide horizontal design created to provide a panoramic view of the flames and a strong architectural presence in large interiors.

Its certified rated heat output is 15.0 kW, with a total heat input of 18.1 kW and 82.5% efficiency. Its indicative heating capacity is up to approximately 172 m², depending on building insulation, climate zone and operating conditions.

LIGHT 06N features a full ceramic-glass door with vertical sliding opening for wood loading and tilt opening for easier cleaning. The combustion chamber is lined with CMtech®, while the upper section features a CMtech®2 Catalyst-Flame Arrestor.

Why choose the Caminetti Montegrappa LIGHT 06N?

• 15 kW rated heat output: suitable for large domestic spaces.
• Heating area up to approximately 172 m²: ideal for large living rooms and open-plan spaces.
• Extra-large format: wide horizontal design with strong visual impact.
• Natural convection: distributes heat without forced ventilation.
• Large ceramic-glass door: provides a panoramic view of the flames.
• Vertical sliding opening: convenient for everyday wood loading.
• Tilt opening: makes glass cleaning easier.
• CMtech® combustion chamber: lined with thick refractory material.
• CMtech®2 Catalyst-Flame Arrestor: ceramic refractory component in the upper firebox.
• 4-Star environmental certification: according to Italian D.M. 186/2017.

Technical specifications

*The actual heating area depends on building insulation, climate zone, ceiling height, room layout and operating conditions.

An extra-large fireplace for a panoramic view of the flames

LIGHT 06N is characterised by its extra-large horizontal format. The wide glass surface turns the fire into a strong architectural feature, making the fireplace particularly suitable for large contemporary living rooms and open-plan interiors.

The full ceramic-glass door preserves an uninterrupted view of the flames, while the vertical sliding system provides convenient access to the firebox.

Natural convection for quiet heating

The LIGHT 06N version uses natural convection to distribute heat without forced ventilation. This makes it particularly suitable for customers looking for quiet operation and gradual, natural heat distribution.

CMtech® combustion chamber

The combustion chamber is lined with CMtech®, a thick refractory material. The upper section features a CMtech®2 Catalyst-Flame Arrestor made from ceramic refractory material.

How much space can the Caminetti Montegrappa LIGHT 06N heat?

With a 15 kW rated heat output, LIGHT 06N is suitable for an indicative heating area of up to approximately 172 m². Correct sizing should also take into account room volume, thermal insulation, climate zone, exposure and internal layout.

Installation and chimney system

LIGHT 06N features a Ø 250 mm top flue outlet. The manufacturer specifies an internal chimney section of Ø 25 cm or 25 × 25 cm and a minimum chimney height of 5 metres.

Installation must be carried out by qualified personnel in accordance with current regulations and the manufacturer's technical instructions.

4 Stars, A+ energy class and incentives

LIGHT 06N is 4-Star certified according to Italian D.M. 186/2017 and has an A+ energy class. Eligibility for incentives or tax deductions depends on the type of installation, installation location and current regulations.

Please consult our guide to incentives and tax deductions for fireplaces and biomass heating appliances to check the requirements applicable to your installation.
