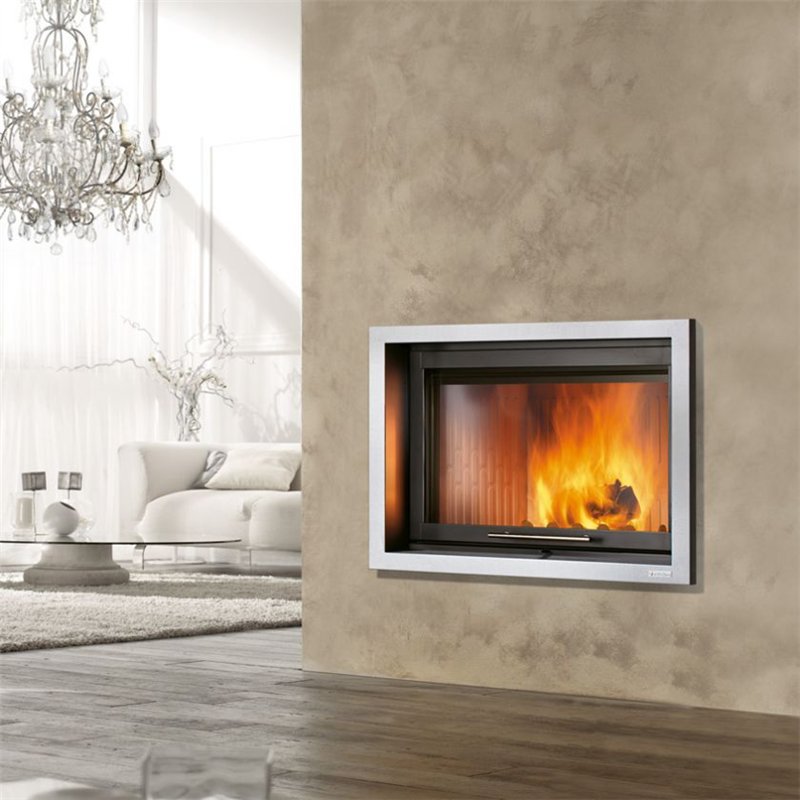

Caminetti Montegrappa LIGHT 02 V-E 101x55 16.7 kW Ventilated Wood-Burning Fireplace
The Caminetti Montegrappa LIGHT 02 V-E is a front ventilated and ductable wood-burning fireplace designed to combine high heating performance, a wide panoramic view of the flames and effective hot-air distribution.
Its certified rated heat output is 16.7 kW, with a total heat input of 19.6 kW and 85.2% efficiency. Its indicative heating capacity is up to approximately 192 m², depending on building insulation, climate zone and room layout.
LIGHT 02 V-E features a large full ceramic-glass door with vertical sliding opening for everyday use and tilt opening for easier cleaning. The combustion chamber is lined with CMtech®, while the upper section features the CMtech®2 Catalyst-Flame Arrestor.
Why choose the Caminetti Montegrappa LIGHT 02 V-E?
- 16.7 kW rated heat output: suitable for large domestic spaces.
- Heating area up to approximately 192 m²: ideal for large living rooms and open-plan areas.
- Forced-air ventilation: supports faster and more effective heat distribution.
- Ductable: allows hot air to be distributed through dedicated ducts.
- 85.2% efficiency: high efficiency for a ventilated wood-burning fireplace.
- A+ energy class: excellent energy performance.
- 5-Star environmental certification: according to Italian D.M. 186/2017.
- Large ceramic-glass door: provides a panoramic view of the flames.
- Vertical sliding opening: convenient for everyday wood loading.
- Tilt opening: simplifies glass cleaning.
Technical specifications
| Brand | Caminetti Montegrappa |
| Model | LIGHT 02 V-E |
| Product type | Front ventilated wood-burning fireplace |
| System | Ventilated and ductable |
| Fuel | Wood |
| Total heat input | 19.6 kW |
| Certified rated heat output | 16.7 kW |
| Efficiency | 85.2% |
| Indicative heating area | Up to approximately 192 m²* |
| Average wood consumption | 4.6 kg/h |
| CO at 13% O₂ | 0.0418% |
| Primary particulate matter at 13% O₂ | 14 mg/Nm³ |
| OGC at 13% O₂ | 29 mg/Nm³ |
| Flue gas mass flow | 15.2 g/s |
| Flue gas temperature | 192 °C |
| Required draught | 11 Pa |
| Flue outlet | Top Ø 200 mm |
| Internal chimney section | Ø 20 cm / 20 × 20 cm |
| Minimum chimney height | 4 m |
| Combustion air ducts | 2 × Ø 15 cm |
| Dimensions | W 104 × D 52 × H 137 cm |
| Net weight | 263 kg |
| Packed weight | 286 kg |
| Energy class | A+ |
| Environmental certification | 5 Stars – D.M. 186/2017 |
| Combustion chamber | CMtech® refractory lining |
| Catalyst-Flame Arrestor | CMtech®2 |
| Door | Full ceramic glass |
| Door opening | Vertical sliding and tilt opening for cleaning |
*The actual heating area depends on building insulation, climate zone, ceiling height, room layout and operating conditions.
Forced ventilation and hot-air ducting
The main feature of LIGHT 02 V-E is its forced-air ventilation system, designed to distribute heat more rapidly than a natural-convection version.
The fireplace is also ductable, allowing hot air to be routed through dedicated ducts according to the layout of the home.
Equipment included with the ventilated version
The LIGHT 02 V-E version includes dedicated components for ventilation and hot-air distribution, including a remote control, adjustable air outlet, air collectors, flexible ducts, grilles, fan unit, temperature probe and electronic control unit.
Panoramic glass and vertical sliding door
The large ceramic-glass front door provides an extensive view of the flames and makes the fireplace particularly suitable for large living rooms and open-plan interiors.
The vertical sliding mechanism provides convenient access to the firebox, while the tilt opening makes cleaning the glass easier.
How much space can the Caminetti Montegrappa LIGHT 02 V-E heat?
With a 16.7 kW rated heat output, LIGHT 02 V-E is suitable for an indicative heating area of up to approximately 192 m². Correct sizing should also consider room volume, thermal insulation, climate zone, exposure and internal layout.
Installation and chimney system
LIGHT 02 V-E features a Ø 200 mm top flue outlet. The manufacturer specifies an internal chimney section of Ø 20 cm or 20 × 20 cm and a minimum chimney height of 4 metres.
Installation must be carried out by qualified personnel in accordance with current regulations and the manufacturer's technical instructions.
5 Stars, Ecodesign and incentives
LIGHT 02 V-E is 5-Star certified according to Italian D.M. 186/2017 and has an A+ energy class. Eligibility for incentives or tax deductions depends on the type of installation, installation location and current regulations.
Please consult our guide to incentives and tax deductions for fireplaces and biomass heating appliances to check the requirements applicable to your installation.
