PASS-THROUGH element for passage of stainless steel chimney roof
PASS-THROUGH element for passage of stainless steel chimney roof
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Description

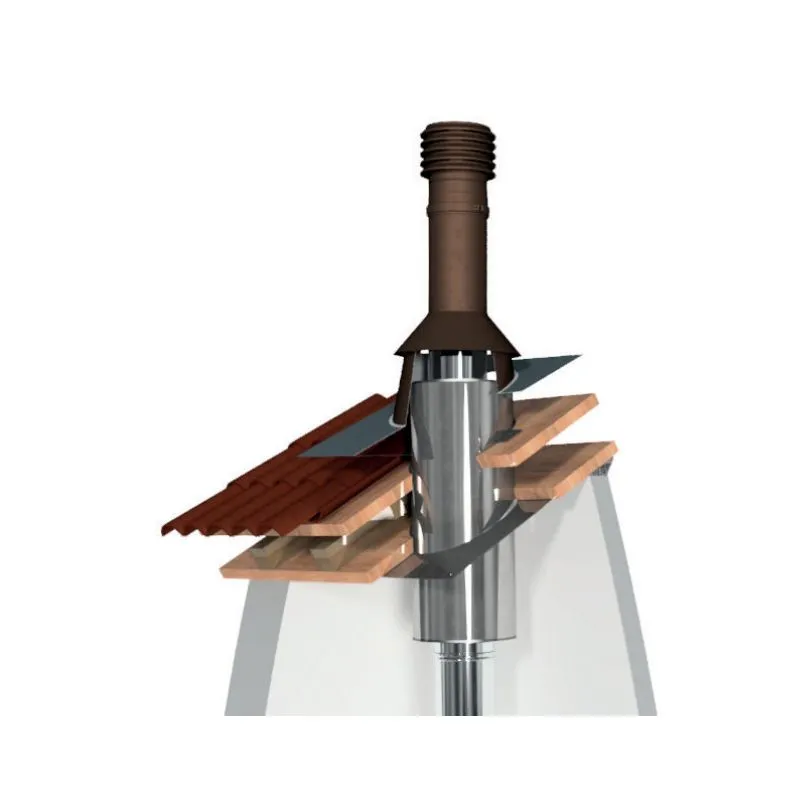

ROOF ELEMENT
STAINLESS STEEL CHIMNEY
FOR ROOF PASSAGE OR SLABS IN COMBUSTIBLE MATERIAL
The "PASSANTE" element by De Marinis can be classified as a real safety accessory, whose function is to prevent overheating and / or fires in combustible materials (wooden beams, grafts, beads, etc.) adjacent to the place specific installation of the complete flue system.
When to use:
The PASSANTE is certified in exclusive combination with De Marinis insulated systems (ISO 25 - ISO 25 COPPER): positioned inside the roof or slab to be crossed, it creates an effective protective barrier against heat, avoiding the possibility of propagation of a direct induction fire. In the test simulation, a fire is propagated within the flue system with a duration of up to 30 min: using the PASSANTE item in combination with the flue gas exhaust, even in this unforeseen case, the safety conditions are actually created to avoid a fire induced.
How to install:
Make a hole in the cover with a diameter equal to the external diameter of the article. Position the PASSER perfectly in the center of the hole, adjusting the fixing tabs according to the slope of the pitch and the thickness of the covering surface.
Finish by installing the appropriate flashing and flashing.
The PASS-THROUGH system allows the installation of the generator in a perfectly coaxial way with it, without any effort
Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel
| Cod. | Øi | Øe | H | A | B | Øn | |
|---|---|---|---|---|---|---|---|
| Acciaio Inox | PT080 | 180 | 300 | 990 | 150 | 50 | Di 80 |
| Acciaio Inox | PT100 | 200 | 350 | 990 | 150 | 50 | Di 100 |
| Acciaio Inox | PT130 | 230 | 350 | 990 | 150 | 50 | Di 130 |
| Acciaio Inox | PT150 | 250 | 400 | 990 | 150 | 50 | Di 150 |
| Acciaio Inox | PT180 | 280 | 400 | 990 | 150 | 50 | Di 180 |
| Acciaio Inox | PT200 | 300 | 450 | 990 | 150 | 50 | Di 200 |
| Acciaio Inox | PT250 | 350 | 500 | 990 | 150 | 50 | Di 250 |
| Acciaio Inox | PT300 | 400 | 550 | 990 | 150 | 50 | Di 300 |
| Acciaio Inox | PT350 | 450 | 600 | 990 | 150 | 50 | Di 350 |
Garanzia: 2 Anni
Termini consegna materiale : 1 settimana
Marcatura CE
