Description

SQUARE / ROUND HOPPER
STAINLESS STEEL CHIMNEY - SINGLE WALL
MONO SYSTEM


Mono is the single-walled flue in stainless steel
Made entirely of AISI 316L stainless steel with BA finish, it guarantees the highest performance and resistance to acid condensation.
Allows the creation of flues and metal chimneys both indoors and outdoors.
Thanks to the cup joint, they can be connected with the possibility of 360 ° rotation avoiding alignment problems typical of screwed or combined systems.
In the case of use in combination with generators that produce humid fumes, cooking vapors or that operate with positive pressures, the gasket (art. DEM.G) not included must be used
The whole MONO INOX line is certified according to European standard EN-1856-2: 2009 and is guaranteed for 10 years


The square / round fitting (hopper) allows the passage from square section pipes (or attachment) to the round section single-wall pipe
The size of the square connection can vary on customer request compared to the standard quota; in this case, before placing an order, please contact our technical service



Designation: Chimney system EN 1856-2: 2009
Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type and thickness: L50040 / 050 AISI 316 L BA steel

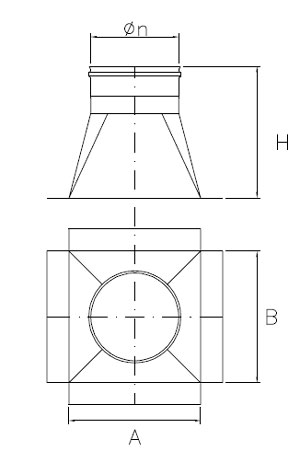

  Cod. Øn max A max B max H max
Acciaio Inox TRAM1 150 170 170 330
Acciaio Inox TRAM2 200 220 220 330
Acciaio Inox TRAM3 250 270 270 330
Acciaio Inox TRAM4 300 320 320 330
Acciaio Inox TRAM5 350 370 370 330
Acciaio Inox TRAM6 400 420 420 330
Acciaio Inox TRAM7 450 470 470 330
Acciaio Inox TRAM8 500 650 650 330



Termini consegna materiale : 10 giorni lavorativi*

La quota H è indicativa e può variare nel caso di dimensioni A e B diverse da quanto previsto come standard


Certificazione : KIWA

Garanzia: 10 Anni

SPECIFICARE SU NOTE ORDINE MISURA BASE (QUOTA A e B) E DIAMETRO NOMINALE Ø n


NON VENDIBILE CON PAGAMENTO CONTRASSEGNO


ARTICOLO SPECIALE REALIZZATO SU MISURA - NON RESTITUIBILE




Product Details
TRAM

Data sheet

System
Single wall
Component
Tramoggia
Material
AISI304 stainless steel
AISI316 stainless steel

Specific References

EAN13
2002000063014
MPN
TRAM
Attachments
Download
MONO series technical data sheet

MONO series technical data sheet

Download (73KB)
DOP Mono Inox series

DOP Mono Inox series

Download (128.61KB)
