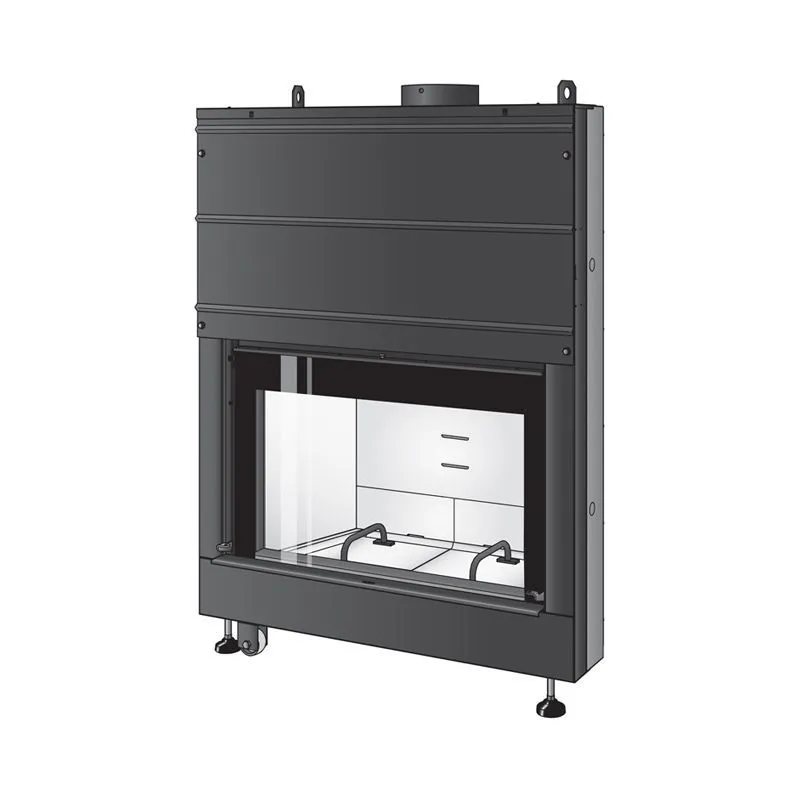

![Montegrappa LIGHT 02 101x55 13 kW wood-burning fireplace Montegrappa LIGHT 02 101x55 13 kW wood-burning fireplace](https://matteoda.b-cdn.net/38367-large_default/montegrappa-light-02-101x55-13-kw-wood-burning-fir.jpg)
Reference: 1530200100
Brand: Caminetti Montegrappa
Natural convection air ducting kit 1530200100 Montegrappa
Natural convection air ducting kit 1530200100 Montegrappa
No supplier
Caminetti Montegrappa LIGHT 02 13 kW - Wood-burning fireplace which is characterized by the width of the door entirely in ceramic glass with latch and flap opening for cleaning.
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
LIGHT 02 wood-burning fireplace with natural convection, ventilated
size 104x52x137cm
Wood-burning fireplace that is characterized by the width of the door entirely in ceramic glass with latch and flap opening for cleaning.
Combustion chamber lined with CMtech®, a refractory made with significant thicknesses; in the upper part the Catalyst-Flame Arrester is in CMtech®2, ceramic refractory.
The equipment of the monoblock includes:
- tools for regulating the combustion air and for opening the door
- 1 ash scoop
LIGHT 02V (ventilated hot air version):
- 1 remote control - 1 adjustable gray nozzle (85x12.5 cm)
- 1 long hopper assembly - 2 PVC grids 14.6x17.5 cm
- 2 Ø 15 cm air manifold assemblies - 2 Ø 15 cm pipe connection manifolds
- 6 hose clamps (Ø 6/17 cm) - 2 pieces of 150 cm aluminum hose Ø 15 cm
- 1 piece of 200 cm long Ø 12 cm aluminum hose
- 1 150 cm length of Ø 12 cm aluminum hose
- 2 inlets for grate Ø 12 cm - 6 galvanized screws
- 1 mobile fan box assembly complete with:
- 1 probe wire clip
- 1 mouthpiece Ø 22 cm -1 electric harness
- 1 probe -1 fan assembly with bracket
- 1 electronic control unit assembly + PWM capacitor
LIGHT 02N S | LIGHT 02V E | |||
convezione naturale | ventilato | |||
Classe di qualità (D.M. 186 - 7/11/2017) | ![]() | ![]() | ||
potenza termica globale (al focolare) | 15,6 | 19,6 | kW | |
potenza certificata | 13,0 | 16,7 | kW | |
CO misurato (al 13% di ossigeno) | 0,086 | 0,0418 | % | |
rendimento (η) | 83,0 | 85,2 | % | |
Particolato primario (PP) al 13% di ossigeno | 24 | 14 | mg/Nm3 | |
COT (al 13% di ossigeno) | - | 29 | mg/Nm3 | |
consumo medio combustibile | 3,5 | 4,6 | kg/h | |
portata in massa dei fumi | 11,5 | 15,2 | g/s | |
temperatura dei fumi | 214 | 192 | °C | |
tiraggio (depressione al camino) | 12 | 11 | Pa | |
tubo uscita fumi | Ø 200 | Ø 200 | mm | |
sez. interna canna fumaria | Ø 20 / 20x20 | Ø 20 / 20x20 | cm | |
altezza min. canna fumaria | 4 | 4 | m | |
condotti entrata aria | 2 x Ø 15 | 2 x Ø 15 | cm | |
superficie riscaldabile a potenza certificata | 149 | 192 | *mq | |
peso netto | 246 | 263 | kg | |
peso con imballo | 267 | 286 | kg |
Classe Energetica: A+
Livello di prestazione ambientale ««««
