- Reduced price

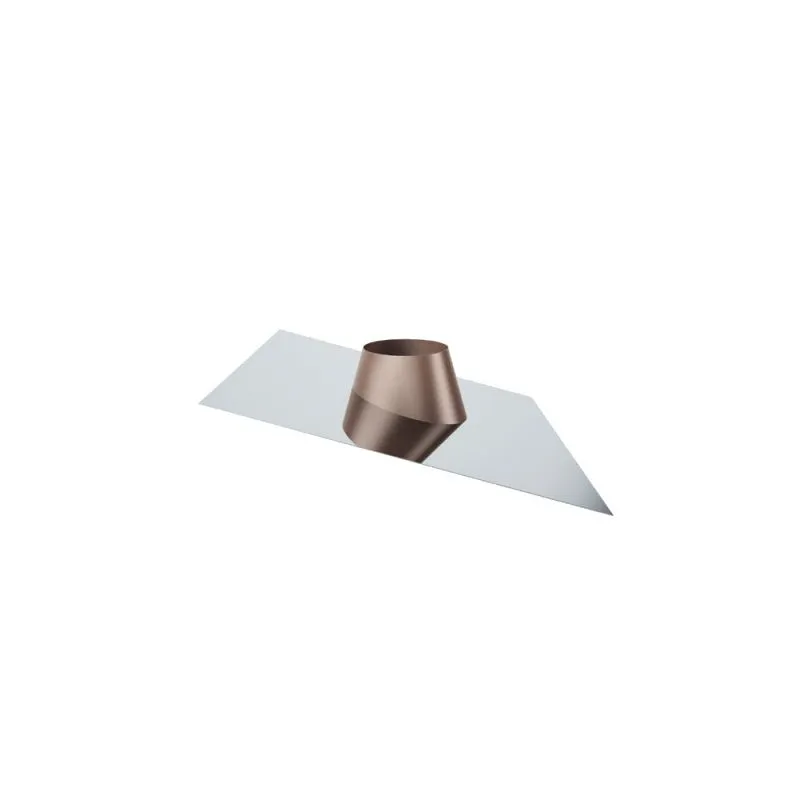

Pitched roof skirt with malleable ALUMINIUM base for chimney flue
De Marinis Mono INOX and ISO series
Available from 100mm diameter up to 400mm diameter
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
SLOPED FLUE WITH ALUMINUM BASE
STAINLESS STEEL FLUE
PAINTED COLLAR
SLOPED FLUE in painted GALVANIZED sheet metal; the ideal choice for outdoor installations that combines product quality, efficiency and durability
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures of up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or condensing gas boilers, etc.).
The entire ISO 25 INOX line is certified according to European standard EN-1856-1:2009 and is guaranteed for 10 years
The slope for pitched roofs is positioned on the roof by placing the base under the tiles, for roofs with a slope of 5° to 30°
Designation: Chimney system EN 1856-1:2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Aluminum base - External wall in painted galvanized sheet metal
Cod. | Øn | Øf | H | A | B | |
---|---|---|---|---|---|---|
Lamiera Verniciata | KFAINBA100 | 100 | 115 | 190 | 500 | 450 |
Lamiera Verniciata | KFAINBA120 | 120 | 135 | 190 | 550 | 500 |
Lamiera Verniciata | KFAINBA130 | 130 | 145 | 190 | 550 | 500 |
Lamiera Verniciata | KFAINBA150 | 150 | 165 | 190 | 600 | 550 |
Lamiera Verniciata | KFAINBA180 | 180 | 195 | 190 | 700 | 650 |
Lamiera Verniciata | KFAINBA200 | 200 | 215 | 190 | 700 | 650 |
Lamiera Verniciata | KFAINBA230 | 230 | 245 | 190 | 750 | 700 |
Lamiera Verniciata | KFAINBA250 | 250 | 265 | 190 | 750 | 700 |
Lamiera Verniciata | KFAINBA300 | 300 | 315 | 190 | 850 | 750 |
Warranty: 2 Years
Material delivery terms:
1 week for Rusty
20 days for Hammered Copper and Matt Black
Certification: KIWA
Reference: CFP130
