Description
RING TERMINAL
STAINLESS STEEL CHIMNEY - SINGLE WALL
MONO SYSTEM

Mono is the single-walled flue in stainless steel
Made entirely of AISI 316L stainless steel with BA finish, it guarantees the highest performance and resistance to acid condensation.
Allows the creation of flues and metal chimneys both indoors and outdoors.
Thanks to the cup joint, they can be connected with the possibility of 360 ° rotation avoiding alignment problems typical of screwed or combined systems.
In the case of use in combination with generators that produce humid fumes, cooking vapors or that operate with positive pressures, the gasket (art. DEM.G) not included must be used
The whole MONO INOX line is certified according to European standard EN-1856-2: 2009 and is guaranteed for 10 years

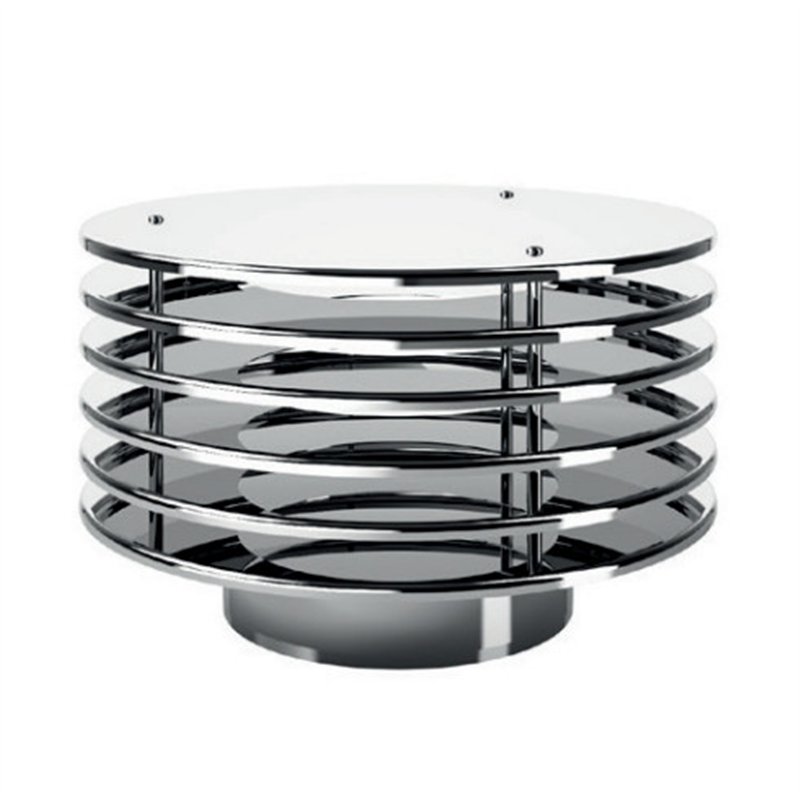

The MES ring hat is usually used for the ventilation of exhaust and clean air extraction columns; not recommended for use as a flue terminal


Designation: Chimney system EN 1856-2: 2009
Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type and thickness: L50040 / 050 AISI 316 L BA steel


  Cod. Øn Hu Ød I
Acciaio Inox MES80 80 105 160 45
Acciaio Inox MES100 100 105 160 45
Acciaio Inox MES120 120 105 230 45
Acciaio Inox MES130 130 105 230 45
Acciaio Inox MES140 140 105 230 45
Acciaio Inox MES150 150 130 230 45
Acciaio Inox MES160 160 130 230 45
Acciaio Inox MES180 180 155 300 45
Acciaio Inox MES200 200 155 300 45
Acciaio Inox MES220 220 155 320 45
Acciaio Inox MES250 250 180 350 45
Acciaio Inox MES300 300 180 400 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 anni

Product Details
MES80

Data sheet

System
Single wall
Component
Terminal
Material
AISI316 stainless steel

Specific References

ean13
2002001772014
MPN
MES
Attachments
Download
MONO series technical data sheet

MONO series technical data sheet

Download (73KB)
DOP Mono Inox series

DOP Mono Inox series

Download (128.61KB)
