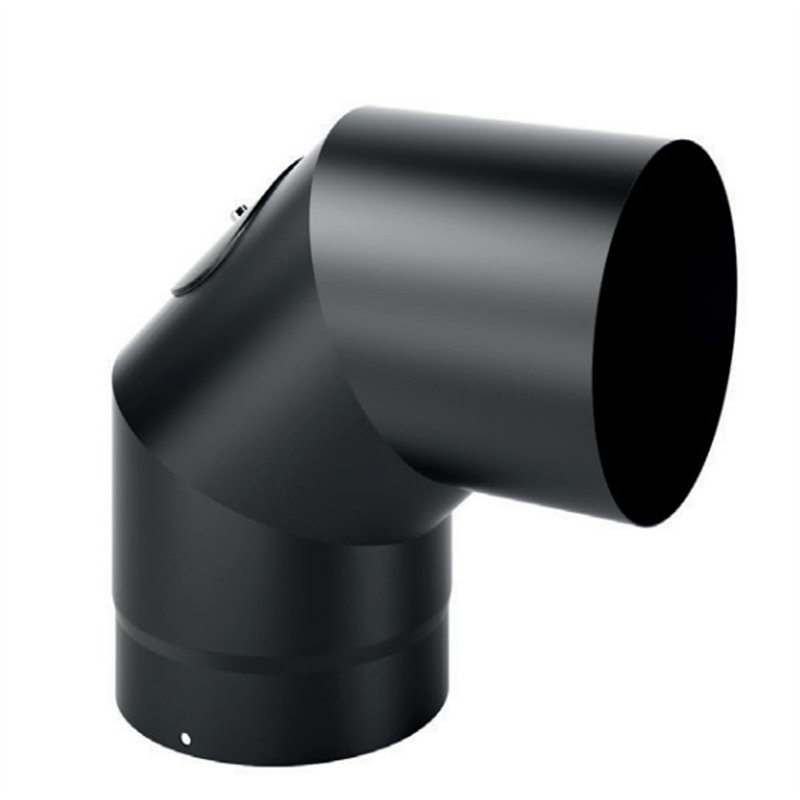

90° De Marinis DESIGN SDC9I wood stove elbow with inspection access
The De Marinis DESIGN SDC9I 90° elbow is a component of the DESIGN flue system designed to create a 90-degree change of direction in the flue connection of wood-burning stoves, fireplaces and biomass appliances.
Unlike the standard SDC9 elbow, the SDC9I features an inspection opening that provides easier access to the inside of the fitting during periodic inspection and cleaning of the connecting flue.
It is manufactured from 2 mm carbon steel with a matt black high-temperature finish. Its robust construction and clean appearance make the DESIGN range particularly suitable for visible indoor installations.
The elbow is available in nominal diameters Ø 120, 130, 140, 150, 160, 180 and 200 mm.
Main features
- Manufacturer: De Marinis
- Range: DESIGN
- Product family code: SDC9I
- Product type: 90° elbow with inspection access
- Angle: 90°
- Function: 90° change of direction with access for inspection and cleaning
- Material: carbon steel
- Steel thickness: 2 mm
- Finish: matt black
- Application: wood-burning stoves, fireplaces and biomass appliances
- Available diameters: Ø 120, 130, 140, 150, 160, 180 and 200 mm
- Temperature class: T600
- Marking: CE
- Reference standard: EN 1856-2:2009
What the DESIGN SDC9I elbow is used for
The SDC9I elbow is used where a 90-degree change of direction is required while also providing an accessible inspection and cleaning point in the connecting flue.
It can be used, for example, to connect a vertical section to a horizontal section or to reach a chimney inlet that is not aligned with the appliance flue outlet.
The inspection opening facilitates maintenance by providing access to the inside of the elbow without necessarily dismantling the flue connection.
Before purchasing, select the correct diameter and check that it matches the appliance flue outlet and all other components used in the installation.
Inspection and cleaning access
The distinguishing feature of the SDC9I is its dedicated inspection access.
Soot and combustion residues can accumulate inside a wood-burning stove flue connection, particularly around changes of direction.
An accessible inspection point facilitates periodic checks and cleaning operations required as part of correct flue system maintenance.
Important: the inspection opening must be correctly closed before operating the appliance. Inspection, cleaning and maintenance of the flue system must be carried out in accordance with the manufacturer's instructions and applicable requirements.
90° elbow and flue configuration
Every change of direction alters the route of combustion products and may affect the draught characteristics of the flue system.
The number and position of elbows, horizontal sections and overall length of the connecting flue should therefore be assessed according to the characteristics of the appliance and chimney.
The flue connection must comply with the appliance manufacturer's instructions and applicable technical regulations.
Technical data and classification
The SDC9I belongs to the De Marinis DESIGN system manufactured in accordance with EN 1856-2:2009 for flue connections used with biomass appliances.
- Temperature class: T600
- Pressure class: N1
- Condensate resistance: D
- Corrosion resistance class: VM
- Material: 2 mm carbon steel
De Marinis dimensions and product codes
The following table lists the available SDC9I 90° inspection elbow variants. All dimensions are expressed in millimetres.
Øn indicates the nominal diameter, while A, B and I correspond to the dimensions shown in the technical drawing included on the product page.
| Finish | De Marinis code | Øn (mm) | A (mm) | B (mm) | I (mm) |
|---|
| Matt black | SDC9I120 | 120 | 134 | 184 | 50 |
| Matt black | SDC9I130 | 130 | 139 | 189 | 50 |
| Matt black | SDC9I140 | 140 | 140 | 190 | 50 |
| Matt black | SDC9I150 | 150 | 138 | 188 | 50 |
| Matt black | SDC9I160 | 160 | 136 | 186 | 50 |
| Matt black | SDC9I180 | 180 | 146 | 196 | 50 |
| Matt black | SDC9I200 | 200 | 156 | 206 | 50 |
Technical note: dimensions A and B vary according to the nominal diameter, while insertion dimension I is 50 mm for all SDC9I variants. Always refer to the technical drawing included on the product page to check the actual overall dimensions.
How to read the technical drawing
- Øn: nominal elbow diameter
- A: dimensional value varying according to diameter
- B: overall dimension shown in the technical drawing
- I: insertion dimension, 50 mm
- Inspection: dedicated access for internal checking and cleaning of the elbow
Comparing the technical drawing, dimensional table and selected diameter helps verify the required installation space and identify the exact De Marinis product code.
DESIGN system compatibility
For correct dimensional continuity and system configuration, the use of De Marinis components from the same range and with the same nominal diameter is recommended.
Before combining components from different systems or manufacturers, their dimensional, technical and regulatory compatibility must be checked.
Installation
Diameter, elbow position, accessibility of the inspection opening, total number of changes of direction, flue connection length and draught must be assessed according to the appliance and flue system.
The DESIGN system is intended for indoor installation. Installation must be carried out by qualified personnel in accordance with the appliance manufacturer's instructions and applicable technical requirements.
