25 cm De Marinis DESIGN SDPF element with flue gas test probe port

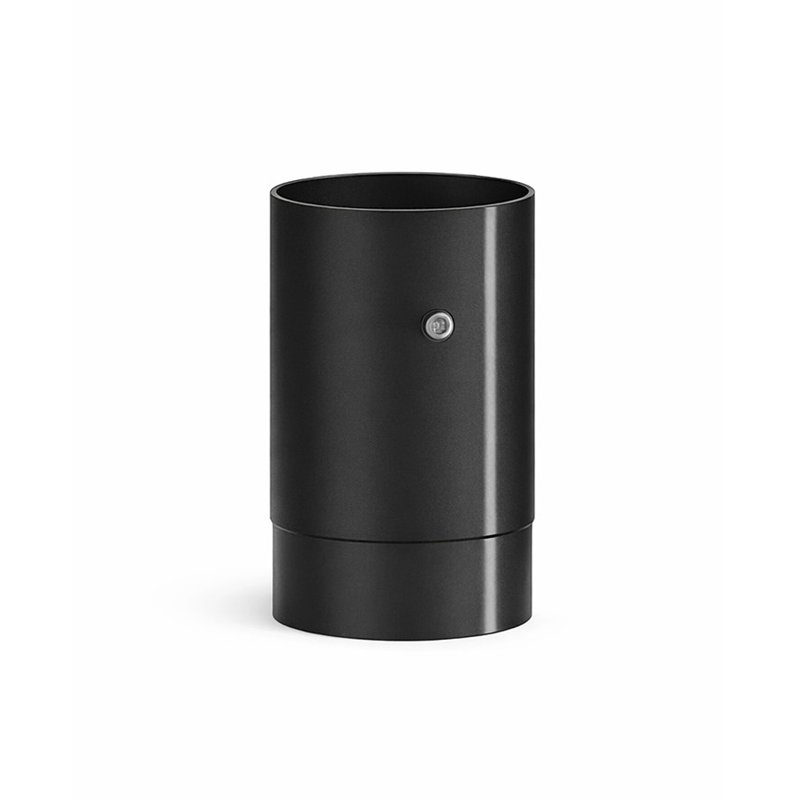

The 250 mm De Marinis DESIGN SDPF straight element is a component of the DESIGN flue system featuring an integrated port for inserting a flue gas test and analysis probe.
It is designed for wood-burning stoves, fireplaces and biomass appliances and provides a dedicated point for combustion and flue gas checks.
The component is manufactured from 2 mm carbon steel with a matt black high-temperature finish. Its robust construction and clean appearance make the DESIGN range particularly suitable for visible indoor installations.
It is available in nominal diameters Ø 120, 130, 140, 150, 160, 180 and 200 mm.
Main features
- Manufacturer: De Marinis
- Range: DESIGN
- Product family code: SDPF
- Product type: straight element with flue gas test probe port
- Nominal length: 250 mm
- Function: provision for flue gas testing and analysis
- Material: carbon steel
- Steel thickness: 2 mm
- Finish: matt black
- Application: flue systems for wood-burning stoves, fireplaces and biomass appliances
- Available diameters: Ø 120, 130, 140, 150, 160, 180 and 200 mm
- Temperature class: T600
- Marking: CE
- Reference standard: EN 1856-2:2009
What the DESIGN SDPF element is used for
The SDPF combines the function of a 25 cm straight flue element with a dedicated flue gas test probe port.
The integrated provision allows a technician to carry out combustion and flue gas checks through a dedicated sampling point in the connecting flue.
It is particularly useful where an accessible flue gas sampling point is required for technical inspections and combustion checks.
Before purchasing, select the correct diameter and check that it matches the appliance flue outlet and all other components used in the installation.
Flue gas test probe port
The integrated test point allows suitable measuring equipment to be inserted for flue gas sampling and combustion analysis.
The position of the component within the flue connection must be selected according to the appliance characteristics, measurement requirements and applicable technical regulations.
The presence of the test port facilitates inspection procedures but does not replace the technical assessment required to determine the correct sampling position.
Technical data and classification
The component belongs to the DESIGN system manufactured in accordance with EN 1856-2:2009 for indoor flue connections used with biomass appliances.
- Temperature class: T600
- Pressure class: N1
- Condensate resistance: D
- Corrosion resistance class: VM
- Material: 2 mm carbon steel
De Marinis dimensions and product codes
The table below identifies the available 250 mm SDPF elements with flue gas test probe port. All dimensions are expressed in millimetres.
Øn indicates the nominal pipe diameter, while Hu and I correspond to the dimensions shown in the technical drawing included on the product page.
| Finish | De Marinis code | Øn (mm) | Hu (mm) | I (mm) |
|---|
| Matt black | SDPF120 | 120 | 200 | 50 |
| Matt black | SDPF130 | 130 | 200 | 50 |
| Matt black | SDPF140 | 140 | 200 | 50 |
| Matt black | SDPF150 | 150 | 200 | 50 |
| Matt black | SDPF160 | 160 | 200 | 50 |
| Matt black | SDPF180 | 180 | 200 | 50 |
| Matt black | SDPF200 | 200 | 200 | 50 |
Technical note: for the SDPF element, Hu is 200 mm and I is 50 mm, corresponding to a nominal overall length of 250 mm. The component features a flue gas test probe port. Please also refer to the technical drawing included on the product page.
How to read the technical drawing
The technical drawing included on the product page allows the dimensions and configuration of the component to be checked before ordering.
- Øn: nominal pipe diameter
- Hu: useful main section dimension, 200 mm
- I: joint/insertion dimension, 50 mm
- Probe port: provision for flue gas testing and analysis
Comparing the technical drawing, dimensional table and selected diameter helps identify the exact De Marinis product code required for the installation.
DESIGN system compatibility
For correct dimensional continuity and system configuration, the use of De Marinis components from the same range and with the same nominal diameter is recommended.
Before combining components from different systems or manufacturers, their dimensional, technical and regulatory compatibility must be checked.
Installation
Pipe diameter, probe port position, flue route, safety clearances and installation method must be determined according to the appliance, flue system and applicable regulations.
The DESIGN system is intended for indoor installation. Installation must be carried out by qualified personnel in accordance with the appliance manufacturer's instructions and applicable technical requirements.
