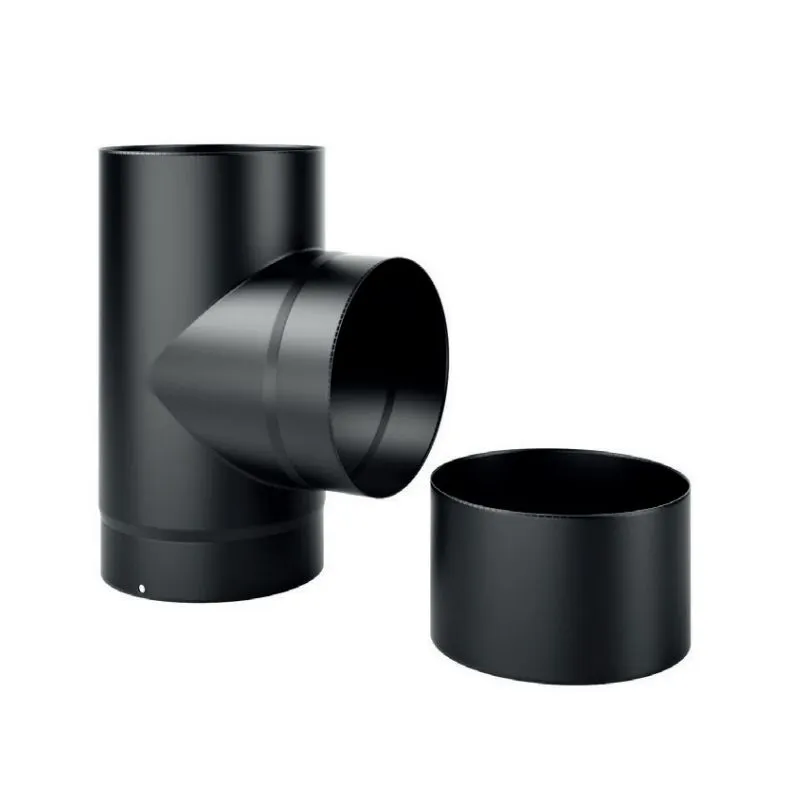

90° De Marinis DESIGN SDT9 tee with lower cap for wood stoves

The De Marinis DESIGN SDT9 90° tee is a component of the DESIGN flue system designed to connect a horizontal flue section to a vertical section for wood-burning stoves, fireplaces and biomass appliances.

The fitting features a removable lower cap, providing access to the lower section of the tee for inspection, cleaning and maintenance.

It is manufactured from 2 mm carbon steel with a matt black high-temperature finish. Its robust construction and clean appearance make the DESIGN range particularly suitable for visible indoor installations.

The horizontal outlet is male. The tee is available in nominal diameters Ø 120, 130, 140, 150, 160, 180 and 200 mm.

Main features

• Manufacturer: De Marinis
• Range: DESIGN
• Product family code: SDT9
• Product type: 90° tee with lower cap
• Branch angle: 90°
• Horizontal outlet: male
• Function: connection between horizontal and vertical flue sections
• Inspection: removable lower cap
• Material: carbon steel
• Steel thickness: 2 mm
• Finish: matt black
• Application: wood-burning stoves, fireplaces and biomass appliances
• Available diameters: Ø 120, 130, 140, 150, 160, 180 and 200 mm
• Temperature class: T600
• Marking: CE
• Reference standard: EN 1856-2:2009

What the DESIGN SDT9 tee is used for

The SDT9 tee is mainly used to create a 90° connection between a horizontal pipe coming from the appliance and the vertical section of the flue system.

This configuration is commonly used where the appliance has a rear flue outlet or where the connection must reach a vertical flue section located behind or to the side of the appliance.

The lower removable cap also provides an accessible inspection and cleaning point at the bottom of the tee.

Before purchasing, select the correct diameter and check that it matches the appliance flue outlet and all other DESIGN components used in the installation.

Lower inspection and cleaning cap

The SDT9 features a removable lower cap that provides access to the area where soot and combustion residues may accumulate.

This access facilitates periodic maintenance and inspection without necessarily dismantling the other components of the connecting flue.

The cap should therefore remain easily accessible after installation.

Important: the lower cap must be correctly fitted and closed before operating the appliance. Inspection, cleaning and maintenance of the flue system must be carried out in accordance with the manufacturer's instructions and applicable requirements.

Technical data and classification

The SDT9 belongs to the De Marinis DESIGN system manufactured in accordance with EN 1856-2:2009 for modular metal flue systems and connecting flues used especially with fireplaces and wood-burning stoves.

• Temperature class: T600
• Pressure class: N1
• Condensate resistance: D
• Corrosion resistance class: Vm
• Material: 2 mm ferrous steel
• System designation: T600-N1-D-Vm-L01200-GXXXNM*

De Marinis dimensions and product codes

The table below lists the available SDT9 90° tee with lower cap variants. All dimensions are expressed in millimetres.

Øn indicates the nominal diameter, while Hu, B, A and I correspond to the dimensions shown in the technical drawing included on the product page.

Technical note: dimensions Hu, A and B vary according to the nominal diameter, while insertion dimension I is 50 mm for all SDT9 variants. The tee features a removable lower cap and a male horizontal outlet. Always refer to the technical drawing included on the product page.

How to read the technical drawing

• Øn: nominal tee diameter
• Hu: useful height shown in the technical drawing
• A: branch overall dimension
• B: dimensional value varying according to nominal diameter
• I: insertion dimension, 50 mm
• Lower cap: removable access for inspection and cleaning

Comparing the technical drawing, dimensional table and selected diameter helps verify the actual fitting dimensions and identify the exact De Marinis product code.

DESIGN system compatibility

For correct dimensional continuity and system configuration, the use of De Marinis components from the same range and with the same nominal diameter is recommended.

Before combining components from different systems or manufacturers, their dimensional, technical and regulatory compatibility must be checked.

Installation

Diameter, tee orientation, accessibility of the lower cap, horizontal flue length, vertical section configuration and chimney draught must be assessed according to the appliance and flue system.

The DESIGN system is intended for indoor installation. Installation must be carried out by qualified personnel in accordance with the appliance manufacturer's instructions and applicable technical requirements.
