Description
WALL CLAMP
STAINLESS STEEL CHIMNEY


Mono is the single-walled flue in stainless steel
Made entirely of AISI 316L stainless steel with BA finish, it guarantees the highest performance and resistance to acid condensation.
Allows the creation of flues and metal chimneys both indoors and outdoors.
Thanks to the cup joint, they can be connected with the possibility of 360 ° rotation avoiding alignment problems typical of screwed or combined systems.
In the case of use in combination with generators that produce humid fumes, cooking vapors or that operate with positive pressures, the gasket (art. DEM.G) not included must be used
The whole MONO INOX line is certified according to European standard EN-1856-2: 2009 and is guaranteed for 10 years

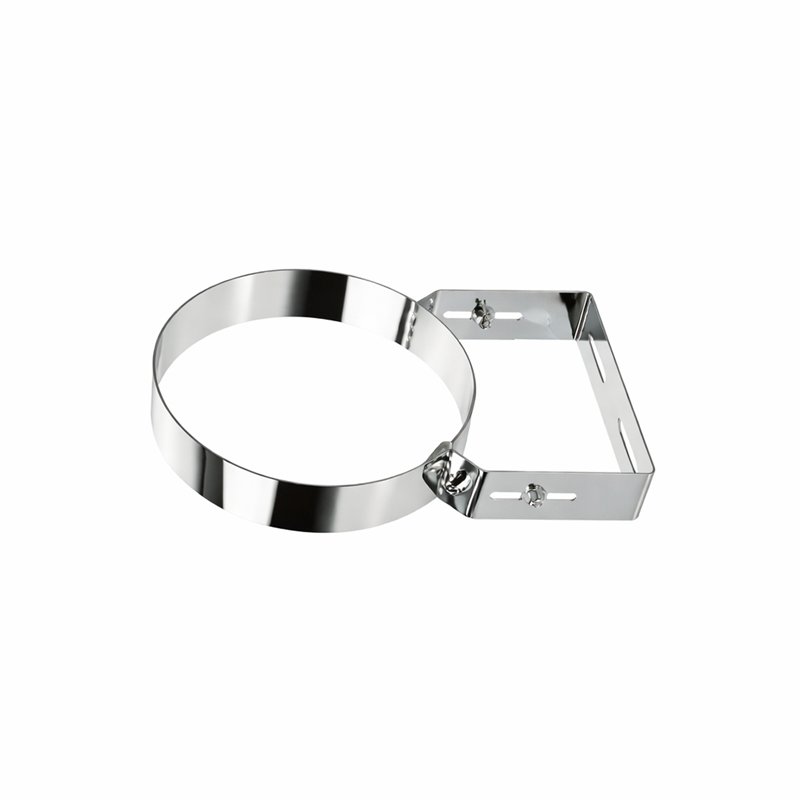

The wall clamp is used to anchor the chimney to the wall. It allows a correct anchoring and positioning of the system on the wall thanks to the adjustment on the three axes. It has no bearing function.

The bracket can be extended with the article CPR50 / CPR100


Designation: Chimney system EN 1856-2: 2009
Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type and thickness: L50040 / 050 AISI 304 L BA steel

  Cod. Øn A B Y
Acciaio Inox SM80 80 100 50 50-70
Acciaio Inox SM100 100 110 50 50-70
Acciaio Inox SM110 110 120 50 50-70
Acciaio Inox SM120 120 130 50 50-70
Acciaio Inox SM125 125 130 50 50-70
Acciaio Inox SM130 130 140 50 50-70
Acciaio Inox SM140 140 150 50 50-70
Acciaio Inox SM150 150 160 50 50-70
Acciaio Inox SM160 160 160 50 50-70
Acciaio Inox SM180 180 160 50 50-70
Acciaio Inox SM200 200 180 50 50-70
Acciaio Inox SM220 220 180 50 50-70
Acciaio Inox SM230 230 180 50 50-70
Acciaio Inox SM250 250 200 50 50-70
Acciaio Inox SM270 270 200 50 50-70
Acciaio Inox SM280 280 200 50 50-70
Acciaio Inox SM300 300 250 50 50-70
Acciaio Inox SM350 350 250 50 50-70
Acciaio Inox SM400 400 300 50 50-70
Acciaio Inox SM450 450 380 100 50-70
Acciaio Inox SM500 500 380 100 50-70
Acciaio Inox SM550 550 400 100 50-70
Acciaio Inox SM600 600 450 100 50-70
Acciaio Inox SM650 650 500 100 50-70
Acciaio Inox SM700 700 550 100 50-70
Acciaio Inox SM750 750 600 100 50-70

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
