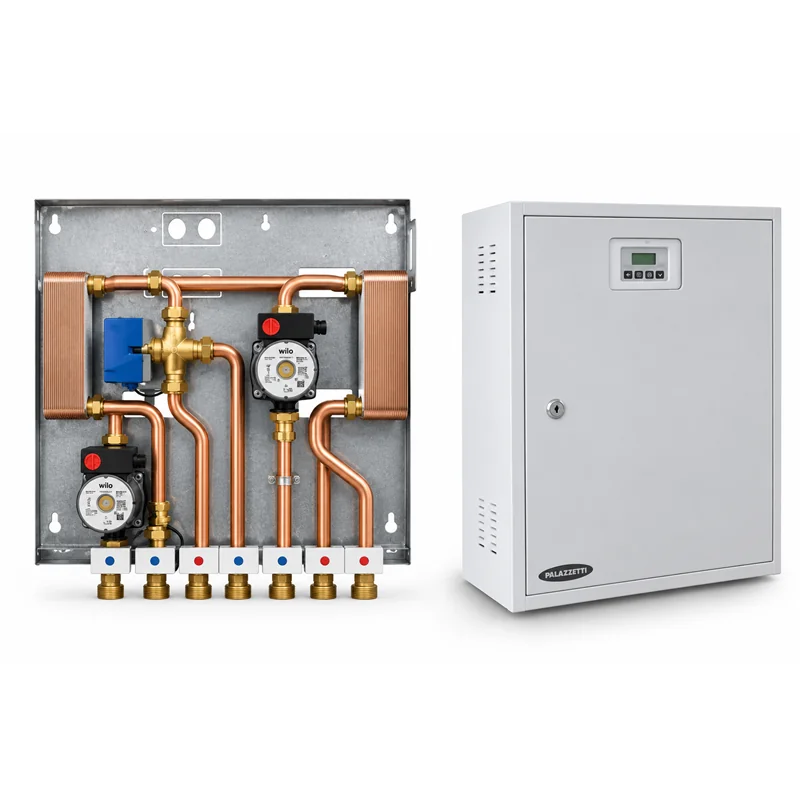

Palazzetti L5 hydraulic separation and buffer management kit

The Palazzetti L5 high-efficiency kit, code 892006761, is designed to integrate a compatible hydro fireplace into an existing heating system while managing a buffer tank for domestic hot water production.

Main functions

• hydraulic separation between the appliance primary circuit and the heating-system secondary circuit;
• management of a buffer tank used for domestic hot water production.

Kit components

• two circulation pumps;
• 40 kW plate heat exchanger;
• 3-way diverter valve;
• non-return valve;
• electronic control unit.

Hydraulic separation

The 40 kW plate heat exchanger separates the appliance circuit from the secondary heating circuit while allowing thermal energy to be transferred between them.

Buffer tank management

The L5 kit is designed to manage a thermal buffer tank used within the domestic hot water system.

A correctly designed thermal store can provide greater flexibility in the use of the heat produced by the appliance.

L1, L3 or L5?

Technical specifications

Installation

The L5 kit is a hydraulic heating-system component and must be installed by a qualified technician.

Compatibility with the appliance, hydraulic design, buffer tank sizing and other system components must be checked before ordering.
