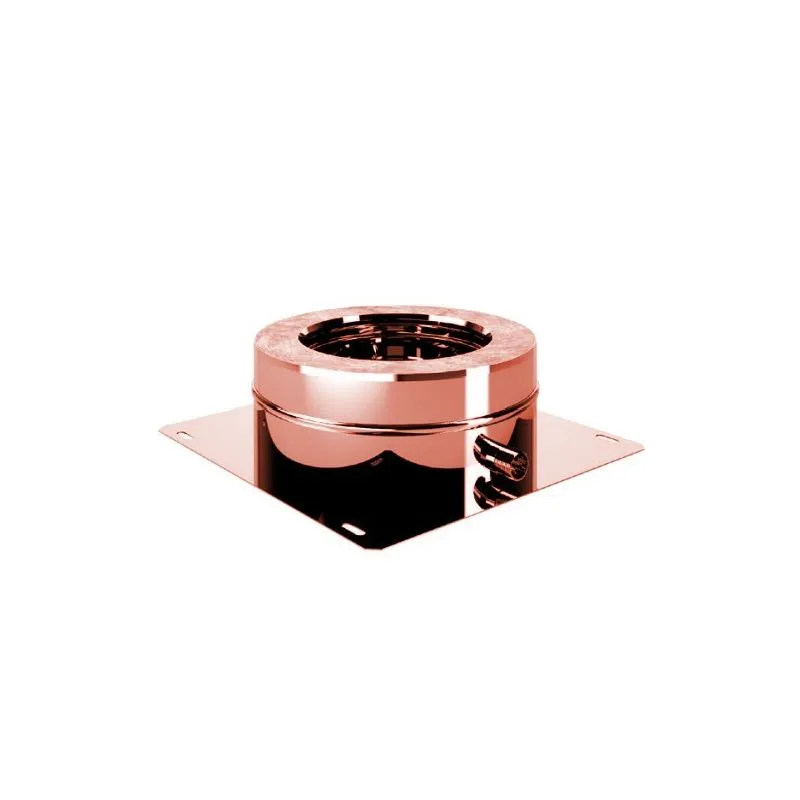

BASE PLATE WITH CONDENSATE DRAIN
COPPER CHIMNEY - DOUBLE INSULATED WALL
ISO50 COPPER SYSTEM

Iso50 Rame is the double-walled flue system insulated with 50mm of high-density mineral wool, with an internal wall in AISI 316 stainless steel and an external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
It is particularly suitable in all those situations where a high thermal resistance is required, by law or necessity.
The entire ISO 50 Copper line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years

The base plate, installed on the ground or using support fins art. DEM.CUCP or DEM.CUCPC, allows to support the flue. It is equipped with a 3/4" female threaded fitting for the central condensate drain. Especially suitable for combination with condensing generators

Designation: Chimney system EN 1856-1:2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel - External wall in NATURAL COPPER

Material delivery terms: 1 week

Certification : KIWA

Warranty: 10 years
