90 ° T-FITTING
COPPER CHIMNEY - DOUBLE INSULATED WALL
ISO50 COPPER SYSTEM

Iso50 Rame is the double wall flue system insulated with 50mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional gas boilers or condensation, etc ..).
It is particularly suitable in all those situations where a high thermal resistance is required, by law or necessity.
The whole ISO 50 Copper line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

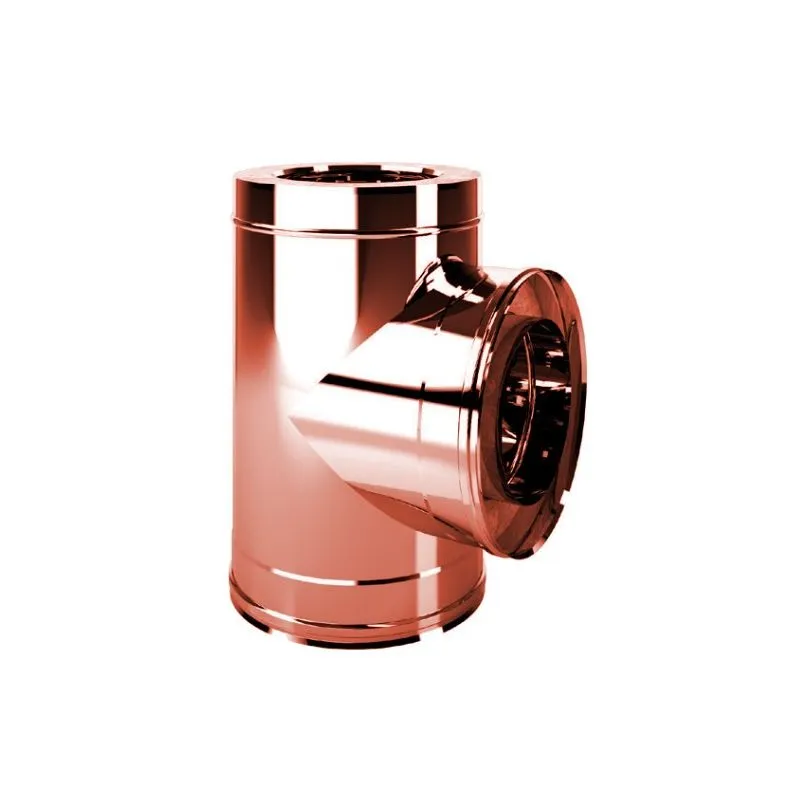

The T fitting allows the connection between the vertical flue and the horizontal smoke channel; the horizontal connection is in double wall system with MALE connection

Designazione: Sistema di camino EN 1856-1:2009
Classe di temperatura:  T200 (con guarnizione) - T600 (senza guarnizione)
Classe di pressione: P1 (con guarnizione) - N1 (senza guarnizione)
Resistenza alla condensa: W (con guarnizione ) - D (senza guarnizione)
Classe di resistenza alla corrosione : V2 (combustibili solidi e liquidi)
Tipo materiale : Parete interna in acciaio INOX Aisi 316 - Parete esterna in RAME NATURALE

Delivery terms: 1 week

Certification: KIWA

Warranty: 10 Years
