BASE PLATE WITH SIDE CONDENSATE DRAIN
COPPER FLUE - DOUBLE WALL
COPPER ISOAIR SYSTEM

IsoAIR COPPER is the air insulated double wall flue system with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency, durability and aesthetic appeal
The absence of insulation reduces the overall dimensions to just 2 cm more than the nominal diameter of the internal smoke duct
Mechanical joint with locking collar and sealing gasket, practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa and operating temperatures up to 200 ° C (traditional or condensing gas boilers, pellet stoves and boilers, kitchen and extractor hoods, and so on).
The whole ISOAIR COPPER line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

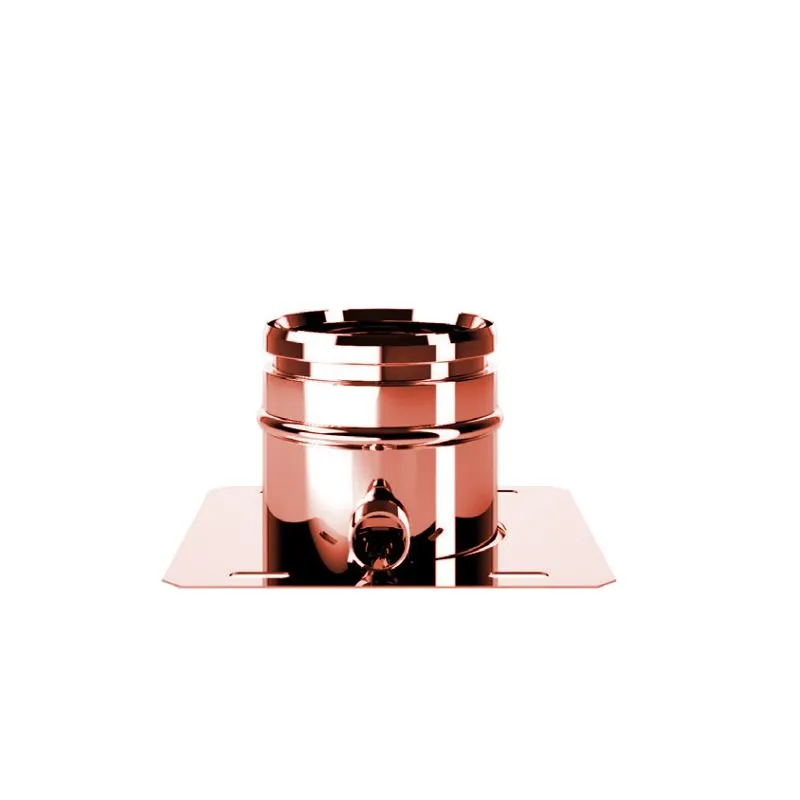

The base plate, installed on the ground or via support fins art. DEM.CP or DEM.CPC, allows the support of the flue. It is equipped with a 1/2 "female threaded fitting for lateral condensate discharge. Not suitable for combination with condensing generators or for receiving humid fumes.

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with gasket)
Pressure class: P1 (with gasket)
Condensation resistance: W.
Corrosion resistance class: V2 (solid and liquid fuels)
Type of material: L50040 / 50 Internal wall in Aisi 316 stainless steel - External wall in NATURAL COPPER

Termini consegna materiale : 1 settimana

Certificazione : CE

Garanzia: 10 Anni
