Reference: 6190310900
Brand: Caminetti Montegrappa
Montegrappa COMPACT 70V 4 star wood fireplace insert
Montegrappa COMPACT 70V fireplaces - Wood-burning insert with ventilated and canalized hot air with reversible door entirely in ceramic glass.
Montegrappa MIGLIO fireplaces - Ventilated hot air pellet insert with reflective vermiculite deflector, preheated primary combustion air and new semi-cylindrical cast iron burner with integrated deflector.
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)

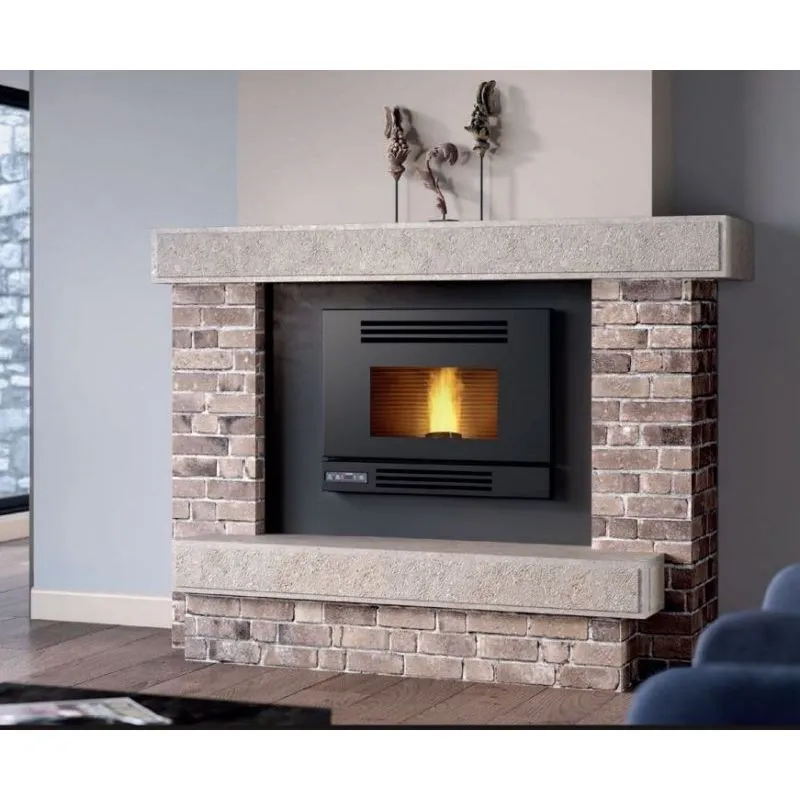

MIGLIO pellet fireplace insert
L 70 x P 56.5 x H 56 cm
Ventilated hot air pellet insert with reflective vermiculite deflector, preheated primary combustion air and new semi-cylindrical cast iron burner with integrated deflector.
Structure in painted steel
Manual operation and with programming clock
Upper smoke outlet with integrated "T" fitting
Removable hearth back
Cast iron burner
Remote control (optional)
Wi-Fi module (optional)
Loading hopper kit (optional)
Compensation frame kit (optional)
Support pedestal kit (optional)
Classe di qualità (D.M. 186 - 7/11/2017) | |||
potenza termica globale (al focolare) | 9,3 | kW | |
potenza certificata | 8,5 | kW | |
CO misurato (al 13% di ossigeno) | 0,006 | % | |
rendimento | 91,0 | % | |
consumo combustibile | 0,92 - 1,94 | kg/h | |
portata in massa dei fumi | 4,0 - 6,1 | g/s | |
temperatura dei fumi | 151 | °C | |
tiraggio (depressione al camino) | 7 | Pa | |
capacità serbatoio | 15 | Kg | |
autonomia | 16 - 7,5 | h | |
tubo uscita fumi | Ø 80 | mm | |
superficie riscaldabile a potenza certificata | 97 | *mq | |
peso netto | 102 | kg | |
peso con imballo | 116 |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale ««««
