Caminetti Montegrappa AZIMUT - 9kW pellet insert with ventilated hot air. It accompanies various "wonder effect" aesthetic doors: 70 cm, 80 cm flat and 80 cm curved.
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)

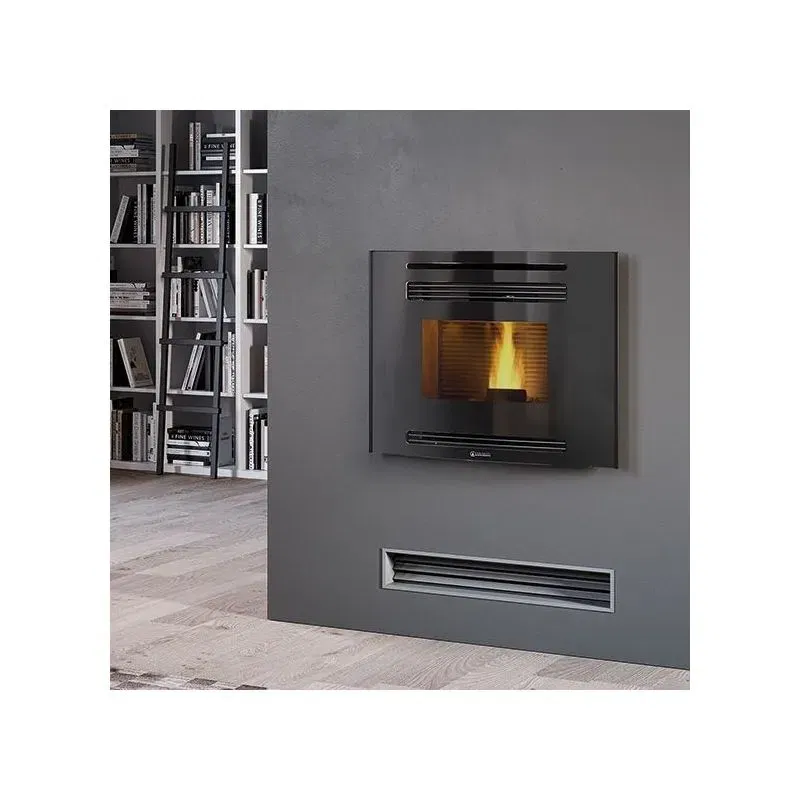

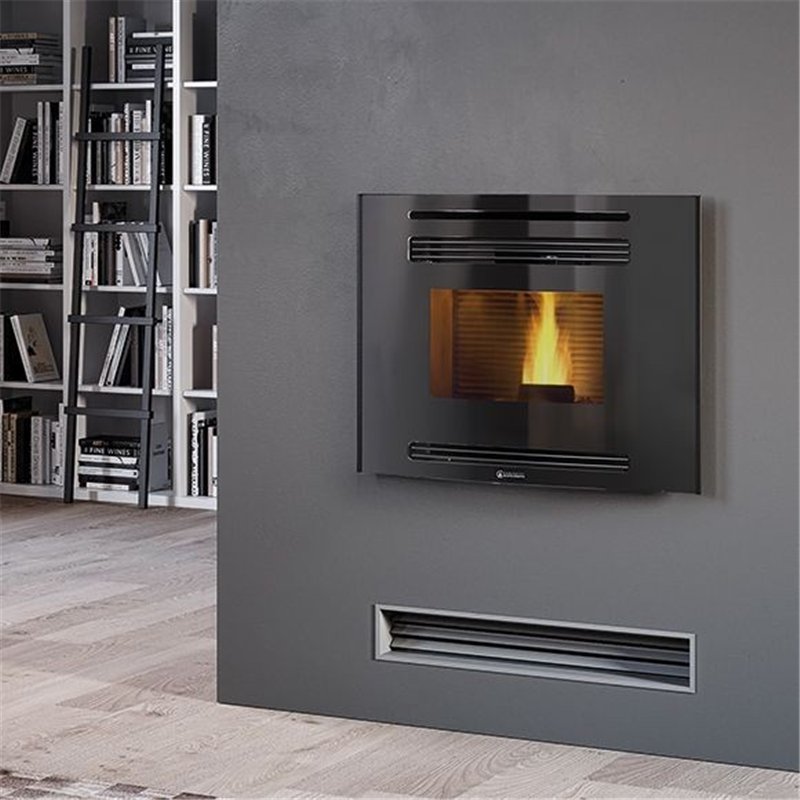

Pellet fireplace insert AZIMUT 9V
L 70/80 x D 58/62 x H 60/63 cm
9kW pellet insert with ventilated hot air. It accompanies various "wonder effect" aesthetic doors: 70 cm, 80 cm flat and 80 cm curved.
The characteristic of the "wonder effect" glass is that, with the insert off, it does not show the inside of the
product making it a perfect piece of furniture while with a functional insert, it makes the
bright and lively flame, making you rediscover the pleasure of seeing fire.
• backlit touch screen remote control with room thermostat function for e
control of operation and comfort from any position in the room
• detection sensor which warns of the pellet reserve allowing the tank to be refilled a
product switched on and avoiding waiting for the entire switch-off and switch-on phase
• TUTOR for an effective combustion control system
• smoke deflector in reflective vermiculite and back panel in cast iron to optimize combustion
increasing its yield
• with the appliance off, easy extraction system for loading the pellets thanks to a lever
release located on the front of the appliance. Alternatively, two practical and ergonomic accessory kits
of loading: the first through an upper drawer hidden from view by the aesthetic door, the
second through the loading hopper placed on the upper part of the product which allows the
side loading of the pellets.
potenza termica globale (al focolare) | 9,3 | kW | |
potenza certificata | 4,1 - 8,5 | kW | |
CO misurato (al 13% di ossigeno) | 0,0124 | % | |
rendimento | 90,9 | % | |
consumo combustibile | 0,92 - 1,94 | kg/h | |
portata in massa dei fumi | 4,0 - 6,2 | g/s | |
temperatura dei fumi | 98 - 145 | °C | |
tiraggio (depressione al camino) | 11 | Pa | |
capacità serbatoio | 15 | Kg | |
autonomia | 16 - 7,5 | h | |
tubo uscita fumi | Ø 80 | mm | |
superficie riscaldabile a potenza certificata | 97 | *mq | |
peso netto | 87 - 93 | kg | |
peso con imballo | 101 - 107 | kg |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale ««««
