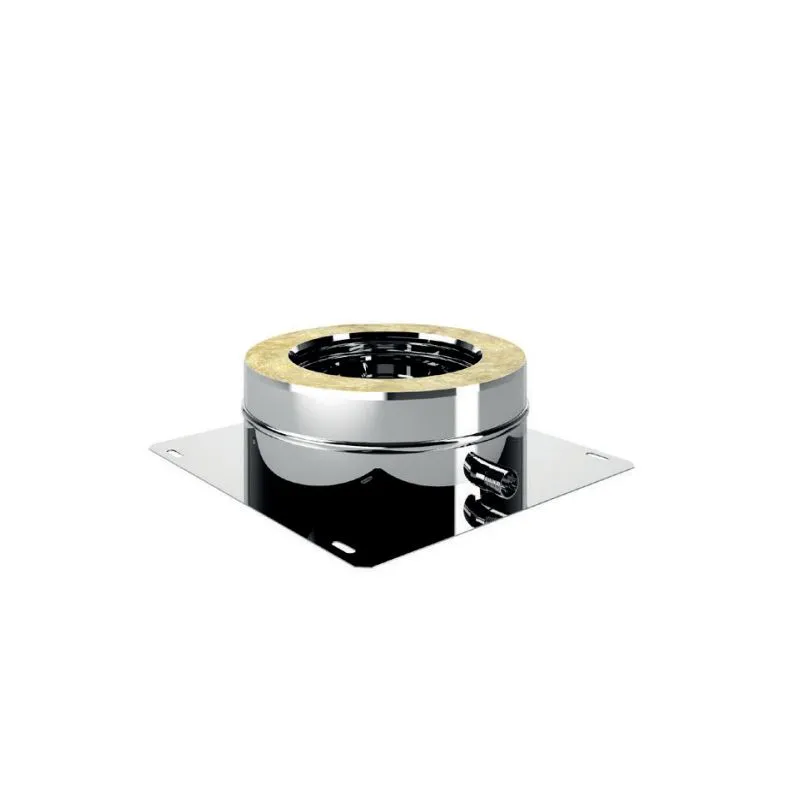

BASE PLATE WITH CONDENSATE DRAIN
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO50 STAINLESS STEEL SYSTEM

Iso50 INOX is the double-walled flue system insulated with 50mm of high-density mineral wool, with an internal wall in AISI 316 stainless steel and an external wall in AISI304BA stainless steel; the ideal choice for installations in combination with generators with high fume outlet temperatures or near materials that are easily flammable by contact
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C
The entire ISO 50 INOX line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years

The base plate, installed on the ground or using support fins art. DEM.CUCP or DEM.CUCPC, allows to support the flue. It is equipped with a 3/4" female threaded fitting for the central condensate drain. Especially suitable for combination with condensing generators

Designation: Chimney system EN 1856-1:2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 anni
