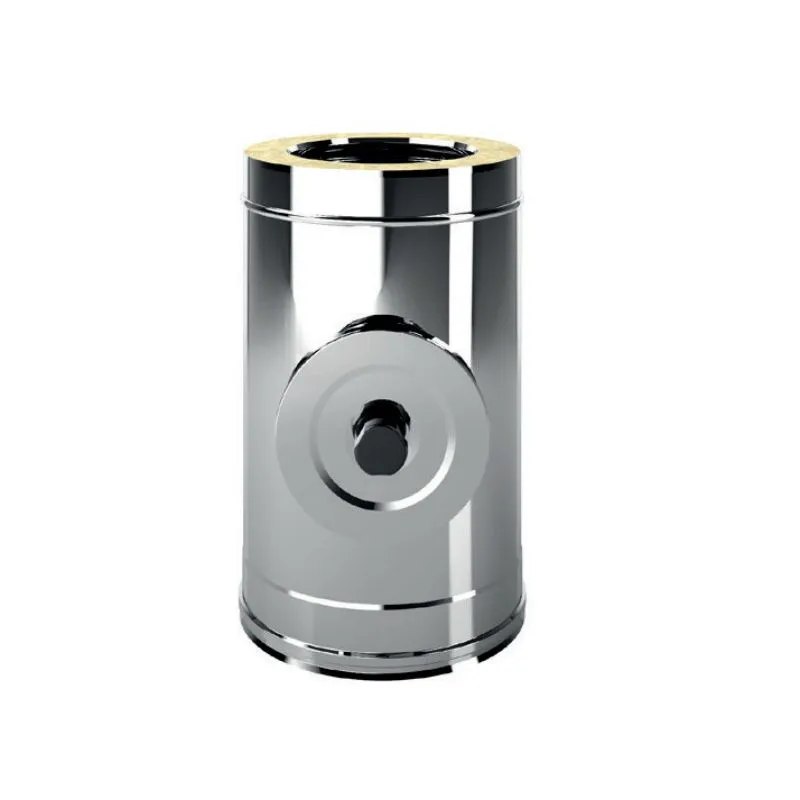

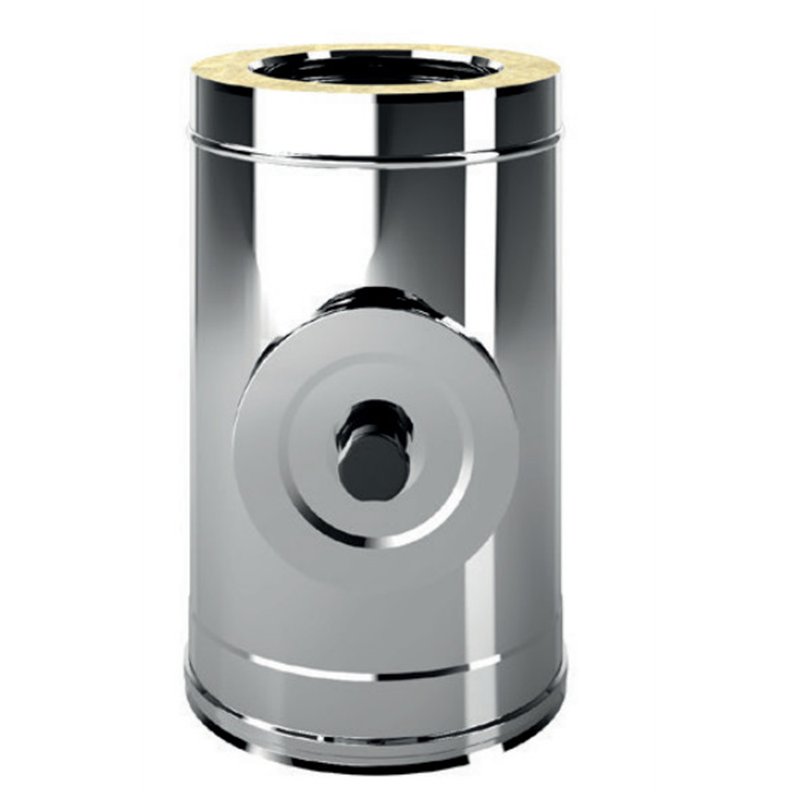

INSPECTION MODULE
STAINLESS STEEL CHIMNEY - INSULATED DOUBLE WALL
ISO50 STAINLESS STEEL SYSTEM

Iso50 INOX is the double-walled flue system insulated with 50mm of high-density mineral wool, with an internal wall in AISI 316 stainless steel and an external wall in AISI304BA stainless steel; the ideal choice for installations combined with generators with high fume outlet temperatures or near materials that are easily inflammable by contactMechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De products Marinis.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C
The entire ISO 50 INOX line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years
The inspection module, usually installed at the base of the flue, allows periodic inspection of the flue.
Usable with positive pressures up to 200 Pa and temperatures up to 200°C

Designation: Chimney system EN 1856-1:2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
