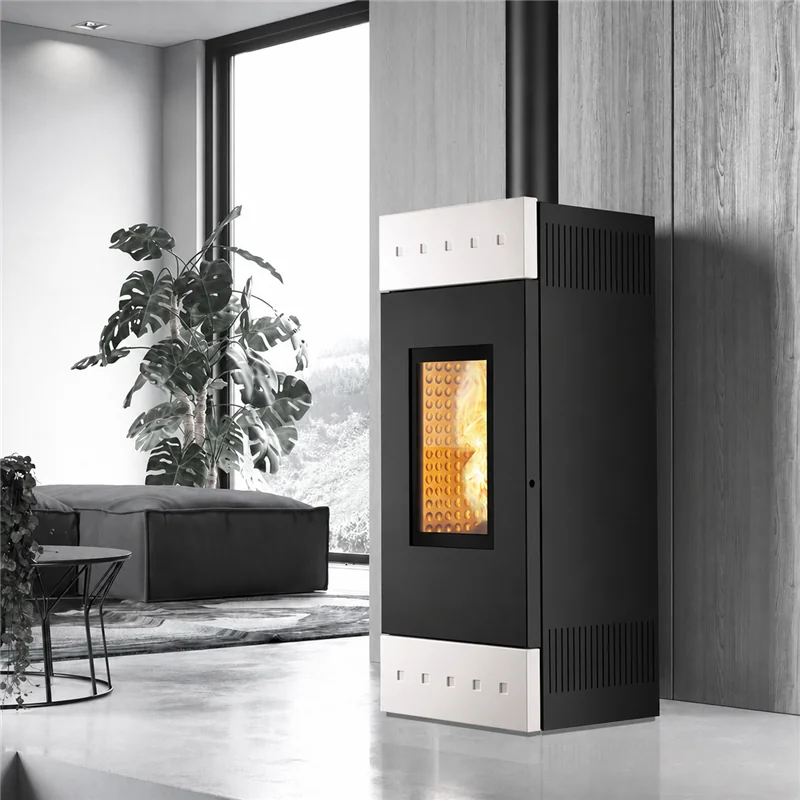

Montegrappa TILE EVO NIS - Upper integrated smoke outlet hot air pellet stove with intelligent SMART ventilation and with a square shape and rigorous design, the front and plinth are in majolica decorated with a geometric pattern.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Air pellet stove with integrated upper ventilated smoke outlet TILE EVO NIS 9 EVO WIFI
L 42 x P 49 x H 109 cm
Square shape and rigorous design, the front and the plinth are decorated with a geometric pattern. The Tile Evo cladding is in majolica, the structure in painted steel. Tile Evo is available in three colors: matt white, dove gray, glossy burgundy.
comfort.
- Standard Wi-Fi module
- Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons
- Cylindrical cast iron burner equipped with flame deflector
- Intuitive software with setting of both the ambient temperature and the maximum operating power. Equipped with STAND BY function to maintain the desired comfort of the internal environment
- Chronothermostat with settable temperature and with the possibility of choosing the operating power of each programmed time slot
| potenza termica globale (al focolare) | 9,3 | kW | |
| potenza certificata | 3,8 - 8,6 | kW | |
| CO misurato (al 13% di ossigeno) | 0,0027 | % | |
| rendimento | 92,1 | % | |
| consumo combustibile | 0,83 - 1,94 | kg/h | |
| portata in massa dei fumi | 3,1 - 6,2 | g/s | |
| temperatura dei fumi | 63 - 135 | °C | |
| tiraggio (depressione al camino) | 7 | Pa | |
| capacità serbatoio | 18 | Kg | |
| autonomia | 21,5 - 9 | h | |
| tubo uscita fumi | Ø 80 | mm | |
| ingresso aria per la combustione | Ø 60 | mm | |
| superficie riscaldabile a potenza certificata | 98 | *mq | |
| peso netto | 78 | kg | |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
Data sheet
