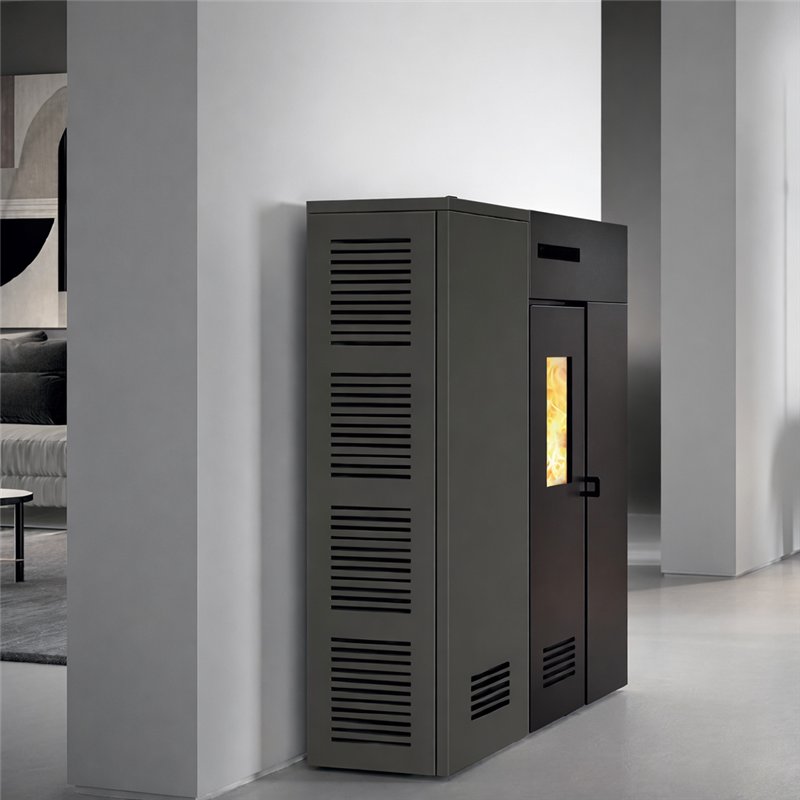

The DUGLIA EP 9.1 kW pellet stove is a slim forced‑air and ductable model with top flue outlet, painted steel body, cast‑iron burner, and vermiculite smoke deflector. With 91% efficiency, A+ energy class, Ecodesign 2022 and 5‑star rating, it heats up to 95 m².
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
The DUGLIA EP is a slim pellet stove designed for high performance in compact spaces, thanks to its 28 cm depth and top flue outlet, which minimizes installation footprint. The painted steel structure is available in metallic, grey and moka finishes.
The combustion system features a cast‑iron burner and vermiculite smoke deflector, ensuring thermal resistance and stable flame quality. The dual lateral smoke path improves heat exchange and overall efficiency.
The stove includes a tangential fan for room heating and a centrifugal fan dedicated to ducting, allowing warm air distribution up to 8 meters through an Ø 8 cm duct, controllable via thermostat. Ducting can be rear or lateral, offering installation flexibility.
Control is managed via manual operation or programmable clock, with user‑adjustable combustion calibration. The electronic board supports external thermostats and an optional Wi‑Fi module. Maintenance is simplified by adjustable anti‑slip feet and an internal layout designed for easy access.
With a nominal heat input of 9.1 kW, certified output 4.0–8.3 kW, pellet consumption 0.88–1.87 kg/h, autonomy 17–8 hours, and a 15 kg hopper, the DUGLIA EP is suitable for heating up to 95 m².
Certified Ecodesign 2022, A+ energy class, 5‑star environmental rating, and eligible for the maximum Conto Termico 3.0 incentive.
| Nominal heat input | 9,1 kW |
| Certified heat output | 4,0 – 8,3 kW |
| Heat to ducting | 2,5 kW (25%) |
| CO (13% O₂) | 0,0120 % |
| Efficiency | 91 % |
| Primary particulate | 5 mg/Nm³ |
| COT | 2 mg/Nm³ |
| Pellet consumption | 0,88 – 1,87 kg/h |
| Flue gas mass flow | 3,6 – 5,5 g/s |
| Flue gas temperature | 95 – 148 °C |
| Required draft | 8 Pa |
| Hopper capacity | 15 kg |
| Autonomy | 17 – 8 h |
| Flue outlet diameter | Ø 80 mm |
| Combustion air inlet | Ø 60 mm |
| Heatable area | 95 m² |
| Net / packaged weight | 105 / 120 kg |
| Dimensions (W × D × H) | 93 × 28 × 103 cm |
| Energy class | A+ |
| Compliance | Ecodesign 2022, 5‑star rating |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
PER I TEMPI DI CONSEGNA CONSULTARE SEMPRE IL NOSTRO SERVIZIO CLIENTI PRIMA DI EFFETTUARE L'ORDINE
Data sheet
Specific References
Reference: 7294049000-2064919702
Brand: Caminetti Montegrappa
Reference: 7291046600
Brand: Caminetti Montegrappa
Reference: 7291046600-2060917000
Brand: Caminetti Montegrappa
Reference: 7294053200-2062919040
Brand: Caminetti Montegrappa
Reference: 7294053200-2062919102
Brand: Caminetti Montegrappa
Reference: 7294041300-2062917436
Brand: Caminetti Montegrappa
Reference: 7291046600-2062916502
Brand: Caminetti Montegrappa
Reference: 7291046200-2060917000
Brand: Caminetti Montegrappa
No customer reviews for the moment.
The DUGLIA EP 9.1 kW pellet stove is a slim forced‑air and ductable model with top flue outlet, painted steel body, cast‑iron burner, and vermiculite smoke deflector. With 91% efficiency, A+ energy class, Ecodesign 2022 and 5‑star rating, it heats up to 95 m².
