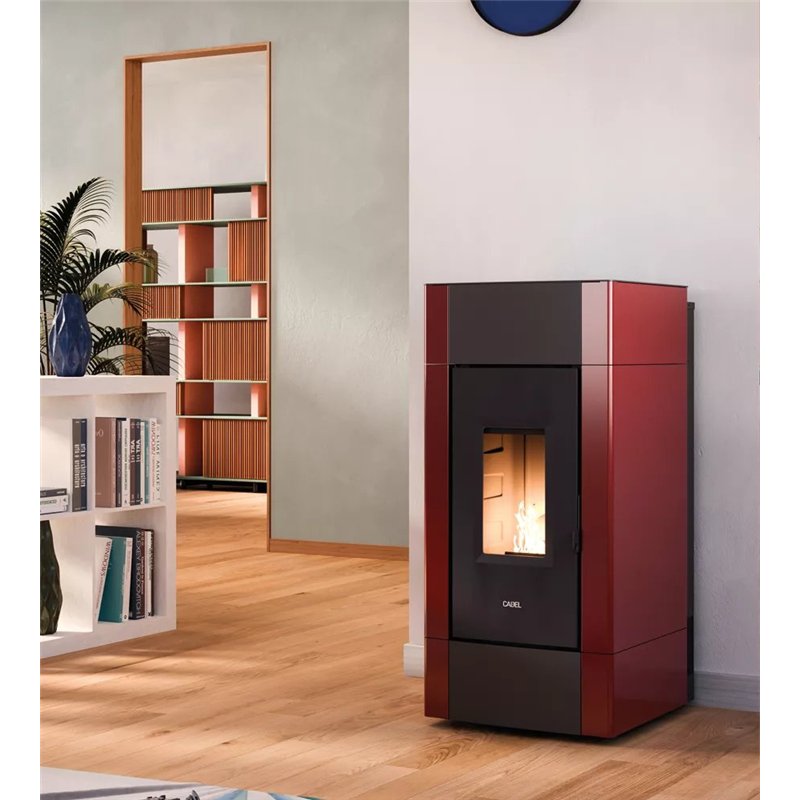

The CADEL Cristal 9 Plus Ductable is an 8.5 kW pellet stove with dual flue outlets and independent ducting. Equipped with a sealed chamber, cast iron brazier and door, integrated Wi-Fi and Bluetooth, it offers versatility, power, and smart management. Certified 4 stars and compatible with the Conto Termico (thermal energy consumption account).
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
The Cristal 9 Plus Ductable is the advanced version of the Cristal 9, designed for those seeking maximum installation flexibility, multi-room heating, and advanced technology. With a nominal power of 8.5 kW, it is ideal for rooms up to 238 m³, ensuring comfort and high performance.
Flexit technology allows you to choose between rear or top flue outlet, while the ducting with an independent motor allows you to heat multiple rooms simultaneously. The Shield sealed chamber and cast iron brazier ensure safety and durability, while the diamond-cut cast iron door adds elegance and robustness.
The Cristal 9 Plus is equipped with built-in Wi-Fi and Bluetooth for remote management via app, with daily and weekly programming. Comfort Mode reduces ventilation for quiet operation, ideal for nighttime use.
The 17 kg tank guarantees up to 28 hours of autonomy, with consumption between 0.6 and 2.1 kg/h. Certified 4 stars by the Ministerial Decree. 186, compliant with Ecodesign and CE regulations, is eligible for the Conto Termico (Thermal Account) scheme, with the possibility of a refund of up to 65% when replacing existing systems.
Available in finishes such as White, Red, and Anthracite, it integrates perfectly into any environment.
Technical features
| Potenza termica nominale | 8,5 kW |
| Potenza al focolare | 9,7 kW |
| Potenza ridotta | 2,5 kW |
| Volume riscaldabile | 70–238 m³ |
| Superficie riscaldabile | 26–88 m² |
| Capacità serbatoio | 17 kg |
| Autonomia | 8–28 ore |
| Consumo pellet | 0,6–2,1 kg/h |
| Rendimento nominale | 87% |
| Rendimento ridotto | 90% |
| Scarico fumi | Ø 80 mm (posteriore o superiore) |
| Presa aria comburente | Ø 60 mm |
| Uscita canalizzazione | Ø 80 mm |
| Peso netto | 75 kg |
| Combustibile | Pellet Ø 6 mm |
| Classe energetica | A+ |
| Certificazioni | 5 stelle D.M. 186, CE, Ecodesign, Conto Termico |
| Funzioni smart | Wi-Fi e Bluetooth integrati |
| Modalità silenziosa | Comfort Mode |
| Tipo di ventilazione | Aria frontale + canalizzazione |
| Braciere | Ghisa |
| Camera di combustione | Stagna Shield |
| Porta | Ghisa diamantata |
| Telecomando | Opzionale |
| Collegamento termostato esterno | Sì |
| Tecnologia installazione | Flexit |
| Canalizzazione | 1 motore indipendente |
Classe Energetica: A+
Certificazione EcoDesign 2022
