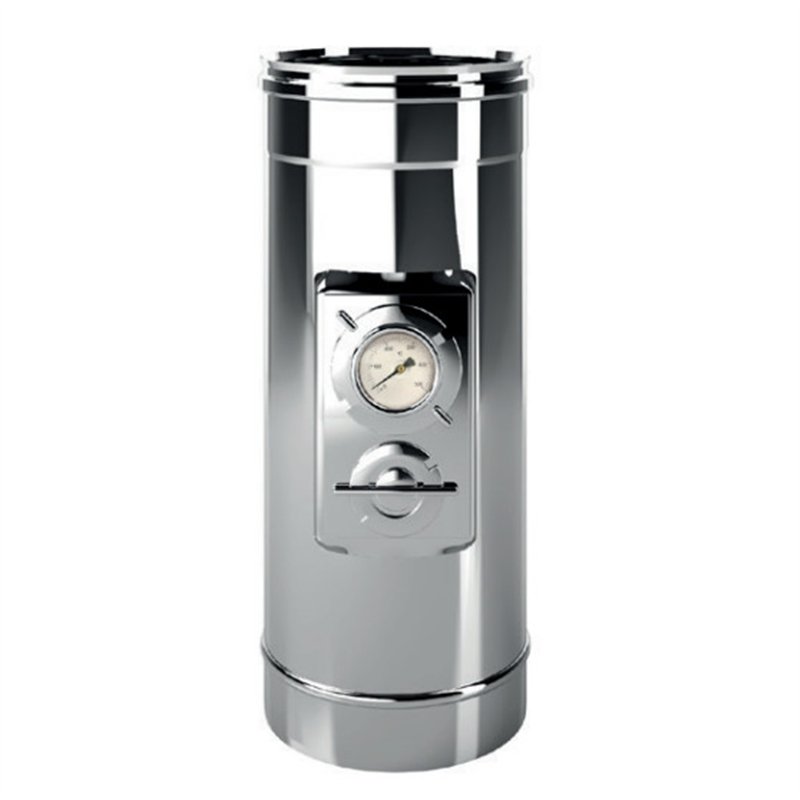

Probe insertion module with thermometer with NITIDOR MICN Mono stainless steel Aisi316 plate Single-wall flue
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
SMOKE AND TEMPERATURE DETECTION MODULE WITH PLATE
STAINLESS STEEL FLUE - SINGLE WALL
MONO SYSTEM
Mono is the single-walled AISI 316L stainless steel flue with BA (natural) finish which guarantees the highest performance and resistance to acid condensation.
It allows the creation of smoke ducts and metal chimneys both indoors and outdoors.
Thanks to the socket joint they can be connected with the possibility of 360° rotation, avoiding alignment problems typical of screwed or combined systems.
If used in combination with generators that produce humid fumes, cooking vapors or that operate with positive pressures, the gasket (art. DEM.G) not included must be used
The entire MONO INOX line is certified according to European regulation EN-1856-2:2009 and is guaranteed for 10 years
The smoke detection module required by Legislative Decree 128/10 is used for the analysis and control of the smoke temperature and the detection of combustion efficiency. With NITIDOR plate
Designation: Chimney system EN 1856-2:2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type and thickness: L50040/050 AISI 316 L BA steel
Cod. | Øn | Hu | I | |
---|---|---|---|---|
Acciaio Inox | MIC160 | 160 | 445 | 45 |
Acciaio Inox | MIC180 | 180 | 445 | 45 |
Acciaio Inox | MIC200 | 200 | 445 | 45 |
Acciaio Inox | MIC220 | 220 | 445 | 45 |
Acciaio Inox | MIC250 | 250 | 445 | 45 |
Acciaio Inox | MIC300 | 300 | 445 | 45 |
Acciaio Inox | MIC350 | 350 | 445 | 45 |
Acciaio Inox | MIC400 | 400 | 445 | 45 |
Acciaio Inox | MIC450 | 450 | 445 | 45 |
Acciaio Inox | MIC500 | 500 | 445 | 45 |
Termini consegna materiale : 1 settimana
Certificazione : KIWA
Garanzia: 10 Anni
