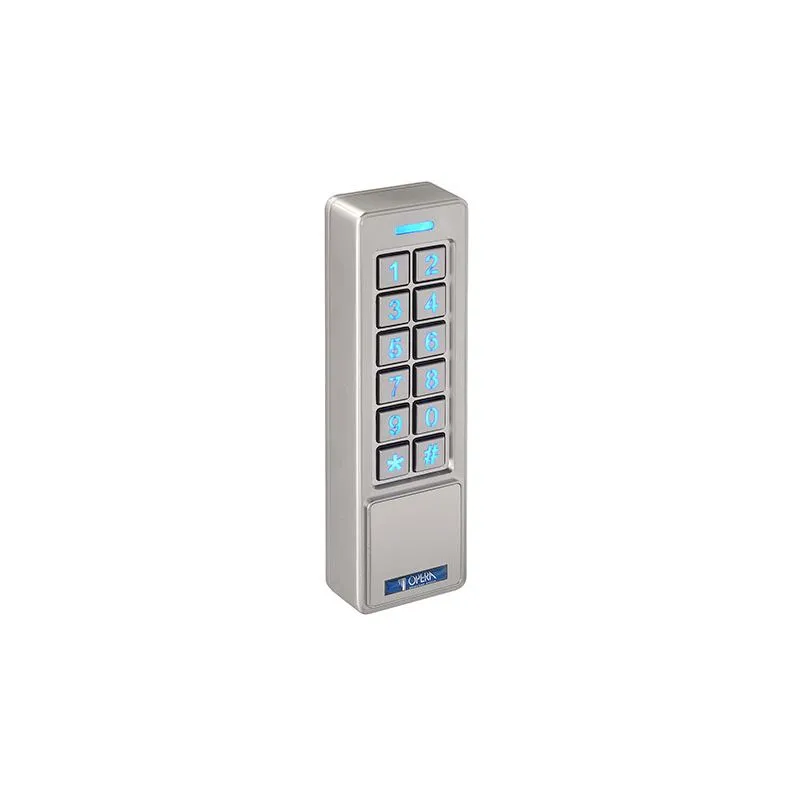

OPERA 57301 access control keypad

KEYBOARD FOR ACCESS CONTROL
OPERA 57301

System for the control of locks and electric strikers by means of a keypad
It can manage up to 2 locks

Art. 57301 - 12/24 Vac / dc - blue backlit keyboard

Degree of protection IP65 - for outdoor use
Current consumption: 50 mA in stand-by / 95 mA with active relay at 12 Vdc, 30 mA in stand-by / 50 mA with active relay at 24 Vdc
Internal buzzer for signaling the pressure of the keys
Double relay for the management of two doors separately

Remote management electronics for:

Management of the lock opening command
Anti-tampering "tamper" contact with activation of the buzzer
Contacts of the 2 output relays 30Vdc / 10A timed from 1-99 sec. for the lock opening command or selectable in bistable operation
Up to 1,000 4 ÷ 6-digit codes or 125 KHz transponder cards can be stored on output relay 1
Up to 10 4 ÷ 6-digit codes or 125 KHz transponder cards can be stored on output relay 2
Access programming with PIN only, transponder only or PIN + transponder
Separate codes storage for door 1 or door 2
Activation of the anti-tamper alarm buzzer
Entrance N.A. buttons for opening door 1 and 2
Code cancellation: single or total
