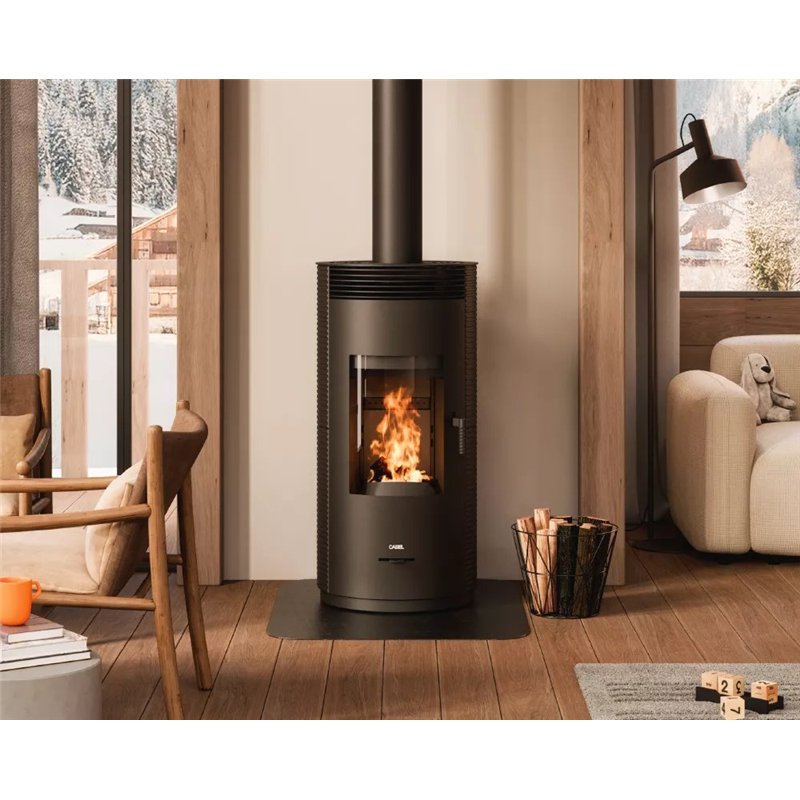

Cadel Spin Plus 9 Wood: 9 kW ductable wood-burning stove

Cadel Spin Plus 9 Wood is a 9 kW ductable wood-burning stove designed to combine the traditional appeal of a real wood fire with controlled hot-air distribution to an additional room.

The stove features front ventilation for heating the main room and an Ø 80 mm hot-air ducting system for distributing part of the heat to another area of the home.

A practical ducting fan speed control allows the airflow to be increased or reduced according to heating requirements, providing more personalised heat distribution.

Why choose Cadel Spin Plus 9 Wood

• 9 kW nominal heat output.
• Ductable wood-burning stove for multi-room heating.
• Front ventilation for the main room.
• Adjustable ducting fan speed.
• Cast-iron cladding with high thermal inertia.
• Combustion chamber for 25–33 cm vertical logs.
• Large glass door for an impressive flame view.
• Dual combustion.
• Large ash pan for easier cleaning.
• 86% nominal efficiency.
• Indicative heating volume up to 252 m³.
• Ø 150 mm top flue outlet.
• Ø 80 mm hot-air duct connection.
• A+ energy class.

Ducted hot-air heating

Spin Plus 9 Wood can distribute warm air to an additional room through its Ø 80 mm ducting connection.

This makes it possible to use a single wood-burning appliance to heat the main installation room while also transferring part of the available heat to another area of the property.

Adjustable ducting fan

A dedicated fan speed regulator allows the amount of warm air delivered through the ducting system to be adjusted.

The airflow can be increased when more heat needs to be transferred to the connected room or reduced once the desired comfort level has been reached.

Front ventilation

Front ventilation distributes warm air directly into the room where the stove is installed.

Combined with the ducting system, this allows Spin Plus 9 Wood to provide heat to the main room and an additional connected area at the same time.

Cast-iron cladding and thermal inertia

The stove features cast-iron cladding with excellent heat-storage properties.

During operation, the cast iron absorbs part of the heat generated by combustion and continues to release it gradually even after the fire begins to die down.

Large glass door and flame view

The large glass door provides a wide and impressive view of the flames, making the fire an important part of the stove's design.

Vertical logs up to 33 cm

The combustion chamber is designed for 25 to 33 cm wood logs positioned vertically.

This configuration makes effective use of the height of the firebox while keeping the external dimensions relatively compact.

Dual combustion

Spin Plus 9 Wood features a dual combustion system designed to improve the use of the energy contained in the wood.

Secondary combustion air helps burn gases generated during the primary combustion phase, contributing to higher performance and reduced emissions.

Large ash pan

A large ash pan makes routine cleaning quicker and easier and reduces the frequency with which collected ash needs to be removed.

Cadel Spin Plus 9 Wood technical specifications

Installation, chimney and ducting

Cadel Spin Plus 9 Wood features an Ø 150 mm top flue outlet and an Ø 80 mm hot-air duct connection.

Both the chimney system and hot-air ducting must be correctly designed according to the installation layout, duct length, bends and required airflow.

Installation must be carried out by qualified personnel in accordance with current regulations and Cadel's technical instructions.
