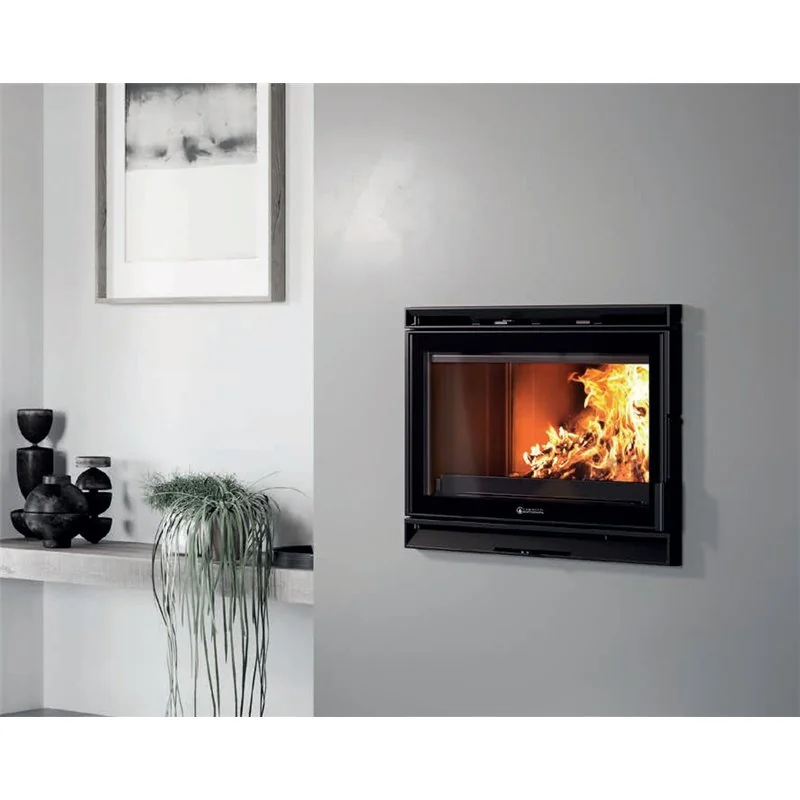

The Caminetti Montegrappa REGOLO 70V EP is a ventilated and ductable wood-burning fireplace insert with 8.5 kW rated heat output, 85% efficiency and an indicative heating area of 93 m². Cast iron and vermiculite combustion chamber, hinged door with screen-printed glass and included Ø 150 mm flue pipe with turbulator. 5-Star environmental rating and Ecodesign 2022 compliance.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
The REGOLO 70V EP is a ventilated and ductable wood-burning fireplace insert suitable for upgrading existing fireplaces or creating new heating fireplaces. It provides 8.5 kW rated heat output, 85% efficiency and an indicative heating area of 93 m².
Its cast iron and vermiculite combustion chamber, hinged door with screen-printed glass and warm air ducting capability make it suitable for domestic wood heating applications.
| Manufacturer | Caminetti Montegrappa |
| Model | REGOLO 70V EP |
| Type | Ventilated and ductable fireplace insert |
| Fuel | Wood logs |
| Rated heat output | 8.5 kW |
| Heat input | 10.0 kW |
| Efficiency | 85% |
| Primary particulate matter (PP) at 13% O₂ | 12 mg/Nm³ |
| Total organic carbon (COT) at 13% O₂ | 35 mg/Nm³ |
| CO at 13% O₂ | 0.052% |
| Indicative heating area | 93 m² |
| Average wood consumption | 2.4 kg/h |
| Flue gas temperature | 200 °C |
| Flue gas mass flow rate | 7.9 g/s |
| Required chimney draught | 12 Pa |
| Flue outlet diameter | 150 mm |
| Chimney internal diameter | 150 mm |
| Minimum chimney height | 3 m |
| Dimensions (W × D × H) | 70 × 46 × 56 cm |
| Net weight | 140 kg |
| Packed weight | 150 kg |
| Environmental rating | 5 Stars – Italian D.M. 186/2017 |
| Product standards | EN 16510-1 / EN 16510-2-2 |
| Ecodesign | 2022 |
The heating area is indicative and depends on building insulation, climate zone, ceiling height and heat losses.
The ventilation system distributes warm air throughout the room. The ducting arrangement allows heat to be conveyed to other areas using suitable ducts and compatible installation accessories.
Measuring 70 × 46 × 56 cm, the REGOLO 70V EP can be installed in fireplace openings compatible with its dimensions and required safety clearances.
The flue outlet diameter is 150 mm. A flue pipe with an integrated turbulator is included to improve heat exchange. Chimney sizing, combustion air supply and ventilation requirements must be checked before installation.
The REGOLO 70V EP has a 5-Star environmental rating under Italian D.M. 186/2017 and meets Ecodesign 2022 requirements. It is also included in the documentation concerning Italy's Conto Termico 3.0 incentive scheme. Eligibility depends on the installation and applicable requirements.
Further information: Conto Termico 3.0 and incentives.
Ordering information: contact Matteoda customer service to check lead times, compatible accessories and installation requirements.
