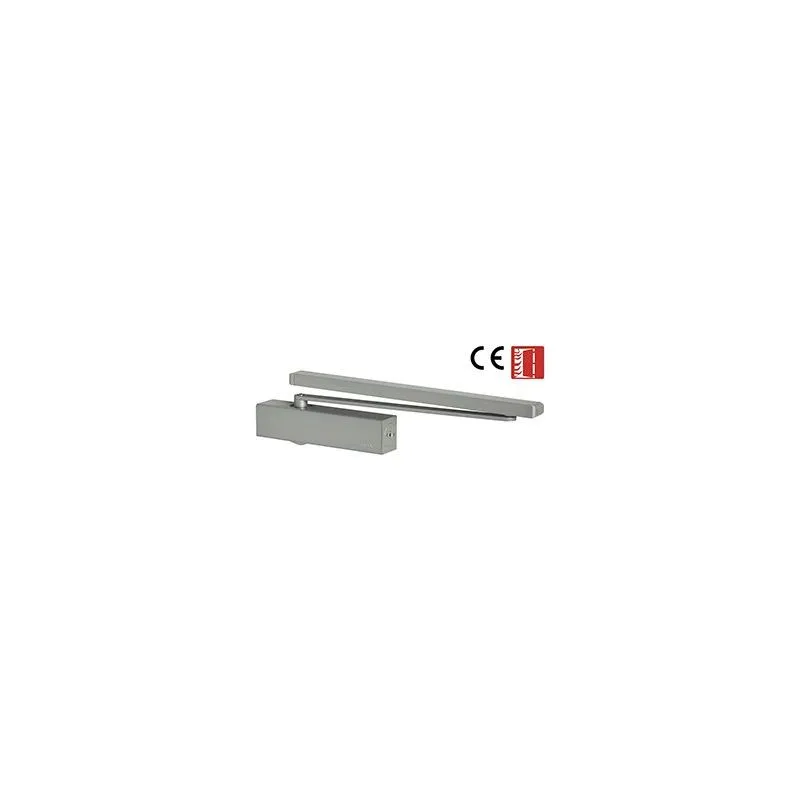

CISA door closer with slide arm
cam
D7200 series

The CISA D7200 door closers, equipped with cam technology, allow to reach a very high efficiency in the opening phase and the maximum control of the closing cycle.

Ease of opening.
The cam technology and the slide arm make the door closer extremely efficient especially in the initial push phase, when the required actuation force is greater, allowing extremely easy opening compared to traditional door closers with rack and pinion technology. All this enclosed in a very compact body, for an optimal aesthetic result.

Installation versatility.
The cam technology offers the possibility to apply the door closer on the leaf even for doors that open outwards, avoiding the assembly of the overturned door closer and allowing a better aesthetics of the entire product.
Quick and easy installation with adhesive template and special mounting bracket

Versatility of the range
Multi-force version (EN 2-5) allows installation on doors from 850 to 1250 mm up to 100 kg in weight.
The CE version is suitable to be applied on fire doors up to 950 mm for 60 kg of weight.

Ease of adjustment.
The sliding cover allows easy access to the closing and final stroke adjustment valves located on the front part of the door closer.
The force adjustment system allows you to visually identify in which force the door lock is operating

Door control and protection.
The closing speed and final stroke adjustment valves allow for accurate control of the door performance.
The version with arm with stop is suitable for those installations that need to keep the door in a certain position in total safety.
The versions equipped with an opening brake (backcheck) allow to safeguard the structure of the door in case of improper use of the same.

TECHNICAL FEATURES
Steel slide arm without stop.
Metal cover casing.
Cam operating mechanism, allows to reduce the force required when opening the door.
Regulating valves with thermostatic device
Multi-force version (EN 2-5) allows installation on doors from 850 to 1250 mm up to 100 kg in weight
The CE EN3 version is suitable to be applied on fire doors up to 950 mm for a weight of 60 kg

ADJUSTMENTS
EN 2-5 closing force adjustment.
Closing speed adjustment from 120˚ up to 7 °.
Final stroke adjustment in the last section (7 °) to compensate for the presence of gaskets and latches.
Brake adjustment in opening to prevent damage to the door, hardware and adjacent walls, due to excessive thrust force in opening. The opening angle can be adjusted from 70 ° to 180 °.
Mechanical stop adjustment from 80˚ - 120˚

EQUIPMENT
Screws
Adhesive templates

FINISHES
Fin. 97 Aluminum

REGULATIONS
CE marking in accordance with the EN 1154 standard
