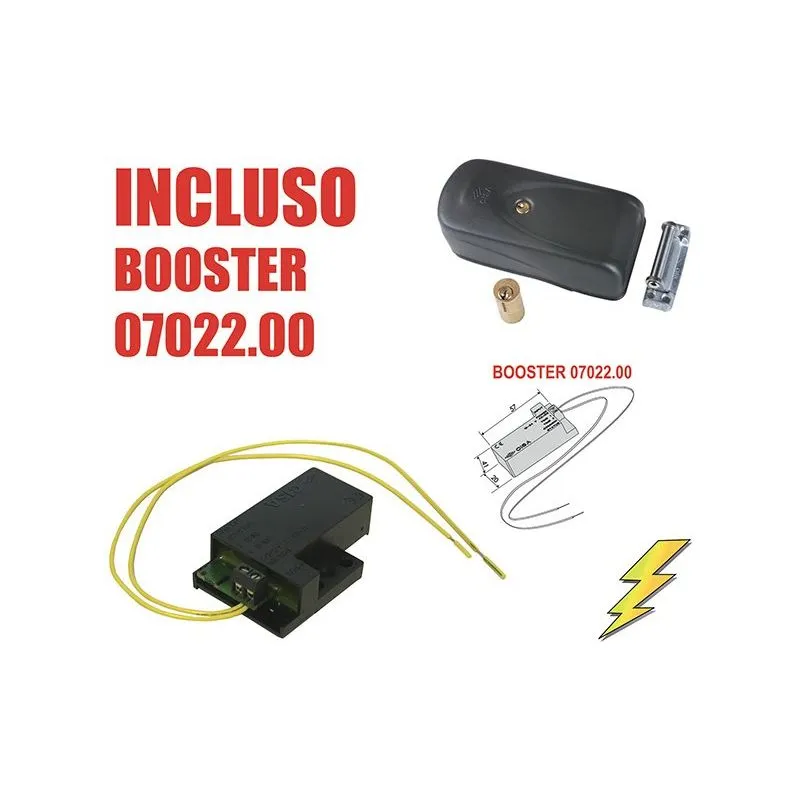

Electro-locking apply Cisa 1A721.00.0.00PB 'ElettriKa' with BOOSTER

Technical features:
• Protection shield in painted steel
• Metal nozzles with swinging pin
in stainless steel
• Rotating hook deadbolt
extruded aluminium
• Voltage 12 V AC CE
• Current absorbed 3A
• Reversibility and variable entry
from 50 to 80 mm
• with built-in BOOSTER

Equipment:
• Nozzle
• Instruction sheet
• Fixing screws
• 2 shims per nozzle
• 3 keys art. 1.01070.10.1

Regulations:
• ELETTRIKA is certified according to the European standard EN 14846:08:
-grade 6 Security
(2,000 kg at lateral thrust)
• Plate and base plate to be welded
• Internal cylinder
