    Cisa 19526 electric lock to insert multi-point MULTITOP
    • Cisa 19526 electric lock to insert multi-point MULTITOP
    • Cisa 19526 electric lock to insert multi-point MULTITOP

    Cisa 19526 electric lock to insert multi-point MULTITOP

    19526.25.0

    Cisa 19526 electric lock to insert multi-point MULTITOP

    Entrata chiave
    €171.80
    Quantity

      Buy with confidence

    WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

      WE SHIP WORLDWIDE

    WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

      Return policy

    (edit with the Customer Reassurance module)

    Description
    CISA electric mortise lock
    for uprights - MULTIPOINT
    Series 19526 MULTITOP (ex 18526)
    ambidextrous

    Technical features:

    • Drive device via
    gear system
    • Box thickness 15.5 mm
    • Anti-saturation system
    • Die-cast metal box with
    zinc coating
    • Stainless steel cover with
    zinc
    • Interchangeable latch with the roller e
    nickel-plated bolt
    • Preparation for 4th and 5th point of
    closing

    Endowment:
    • Pair of nylon studs art. 1.06012.01.0
    • Lock and cylinder fixing screws
    • Instruction sheet

    Certification:
    • This series of locks is certified according to the European standard
    pr EN 15685: 14 - grade 6 Security
    (1,000 kg to the lateral thrust and 600 kg to the front thrust)

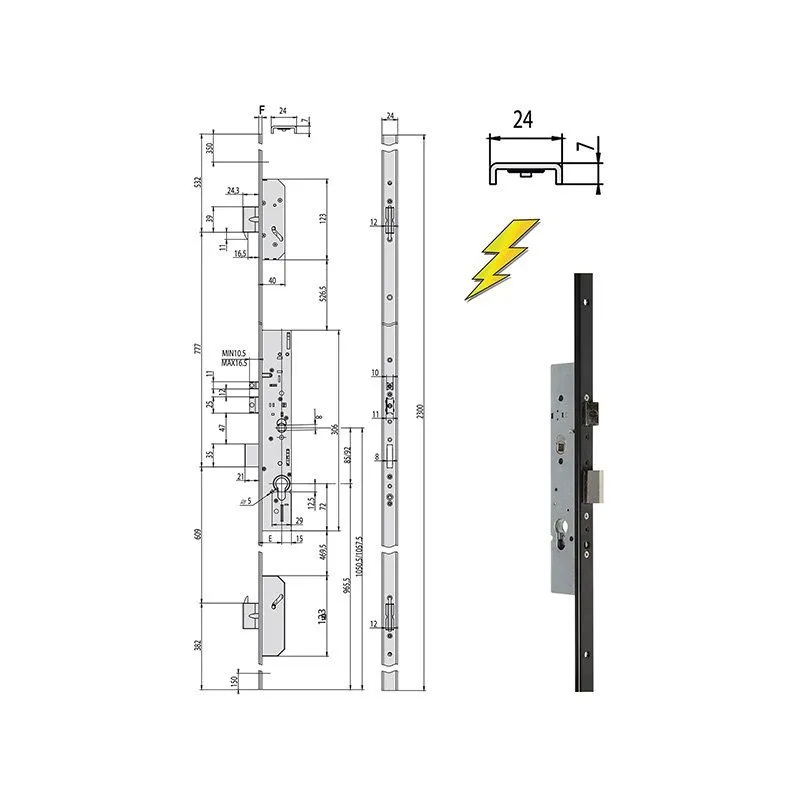

    • INTERAXIS 85 MM
    • Flat flat front plate 24 x 3 mm. in black painted steel with
    height 2,300 mm.
    upper trimming 350 mm.
    lower than 150 mm.
    • Adjustable latch and piston from 10.5 to 16.5 mm. "Self-locking"
    • 3 side bolts
    • Stoppers in nylon head cover
    • Voltage 12Vac to CE
    • Current consumption 3,1A
    Product Details
    19526.25.0

    Specific References

    ean13
    8015345998587
