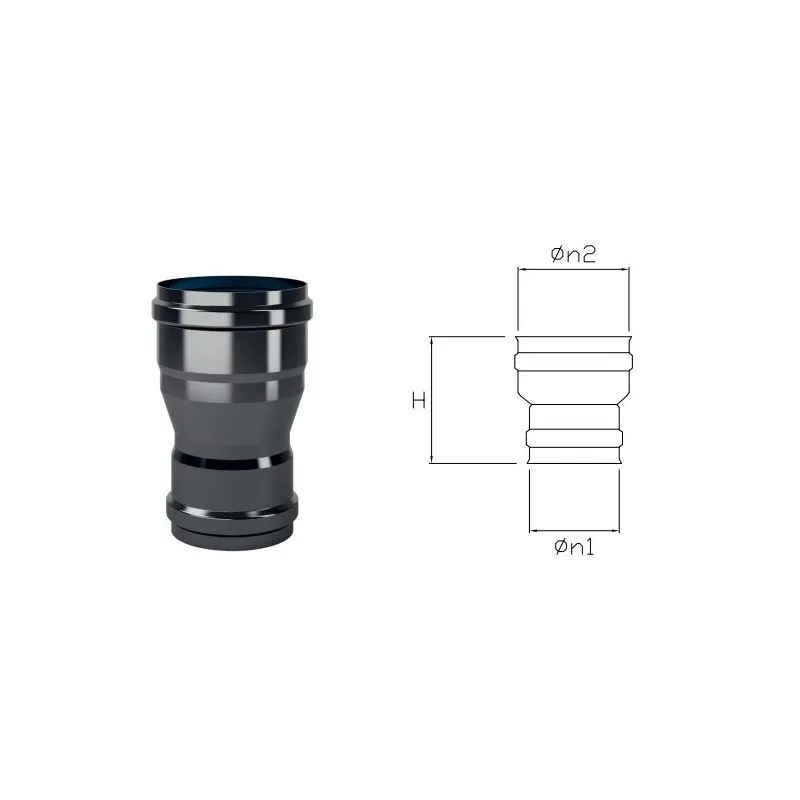

80/100 FEMALE / FEMALE INCREASE SLEEVE
IN BLACK ENAMELED STEEL
DESIGN TECH SERIES

The DESIGN TECH line includes components for the construction of internal flues that can be used in combination with pellet stoves and boilers, extractor hoods or gas boilers and resistant to condensation with V2 certification.
Structure in enamelling steel with a minimum thickness of 1.2 mm including the thickness of the enamel, welded along the entire length and enameled internally and externally
The grafts are by means of a tapered male
Total compatibility with the grafts of the MONO and ISO flues
The products are CE marked according to the European standard EN 1856-2: 2009

The oversize is used as a fitting for in-line diameter increase

Both attacks are FEMALE

Designation: Chimney system EN 1856-2: 2009
Temperature class: T200 (with standard gasket) - T250 (with Viton gasket not included)
Pressure class: P 1
Condensation resistance: W.
Corrosion resistance class: V2

Material type and thickness: Steel L080110-060

Standard gasket included in the scope of delivery

Delivery terms: 1 week

Certification CE

Guarantee: 10 years
