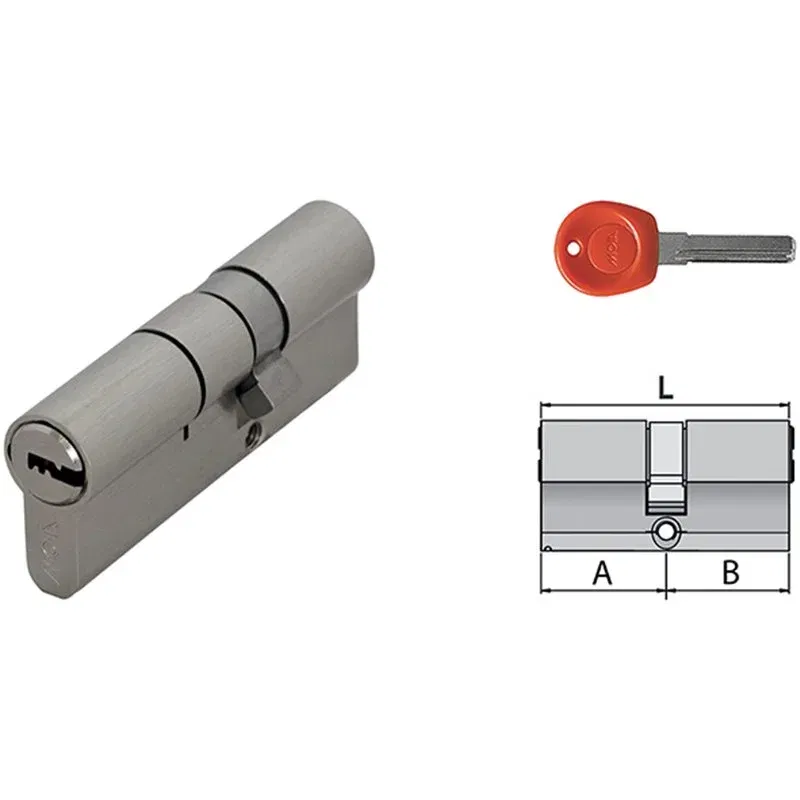

Moia European Profile Security Cylinder key
The European profile security cylinder is the ideal solution to increase the level of protection of doors, both in residential and commercial environments. Made of nickel-plated brass with a monoblock body, it is equipped with a DIN cam activated by a rotor with 14 pins distributed on three rows (7 active with spring + 7 passive), guaranteeing over 2 million possible combinations.
Main security features
Non-friction system: if a key is inserted on one side, the other side remains blocked.
Complete equipment: 5 master keys (orange or blue head) and 2 construction keys (black head).
The construction keys can be deactivated using a dedicated one/off key.
Advanced physical protection
Central reinforcement and pre-cut line designed to facilitate controlled breakage in the event of forced extraction attempts.
Front and rear tempered steel pins for greater resistance to drilling.
Steel pins and anti-rust springs, ideal for combating wear and corrosion.
Anti-bumping system with shaped pins designed to combat illegitimate opening techniques.
Advanced keys and versatility
The computerized point key, reversible and with a long barrel, is compatible with cylinder protections with increased pad and safety defender.
| CODICE |
MISURE |
| A |
B |
L |
| H30+30KD |
30 |
30 |
60 |
| H30+35KD |
30 |
35 |
65 |
| H30+40KD |
30 |
40 |
70 |
| H35+35KD |
35 |
35 |
70 |
| H30+45KD |
30 |
45 |
75 |
| H35+40KD |
35 |
40 |
75 |
| H30+50KD |
30 |
50 |
80 |
| FR30+50KD |
30 |
50 |
80 |
| H30+50KF/OL |
30 |
50 |
80 |
| H35+45KD |
35 |
45 |
80 |
| H40+40KD |
40 |
40 |
80 |
| H30+55KD |
30 |
55 |
85 |
| H35+50KD |
35 |
50 |
85 |
| H40+45KD |
40 |
45 |
85 |
| H30+60KD |
30 |
60 |
90 |
| H35+55KD |
35 |
55 |
90 |
| H40+50KD |
40 |
50 |
90 |
| H45+45KD |
45 |
45 |
90 |
| H35+60KD |
35 |
60 |
95 |
| H40+55KD |
40 |
55 |
95 |
| H30+70KD |
30 |
70 |
100 |
| H40+60KD |
40 |
60 |
100 |
| H45+55KD |
45 |
55 |
100 |
| H50+50KD |
50 |
50 |
100 |
| H30+80KD |
30 |
80 |
110 |
| H40+70KD |
40 |
70 |
110 |
| H45+65KD |
45 |
65 |
110 |
| H50+65KD |
50 |
65 |
115 |
| H55+60KD |
55 |
60 |
115 |
| H30+90KD |
30 |
90 |
120 |
