IAPF probe insertion detection module ISOAIR INOX Double wall flue

Name: IAPF probe insertion detection module ISOAIR INOX Double wall flue
Brand: De Marinis
SKU: IAPF
Price: 45.12 EUR
Availability: PreOrder

Reference IAPF80

Brand De Marinis

ISOAIR INOX double wall flue - IAPF De Marinis - Module for inserting the smoke control probe

TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

ORDERS PREPARED WITH CARE

We prepare every order with care

Description
Product Details

Description

SMOKE DETECTION MODULE

STAINLESS STEEL CHIMNEY - DOUBLE WALL

STAINLESS STEEL ISOAIR SYSTEM

IsoAIR INOX is the air insulated double wall flue system with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability

The absence of insulation reduces the overall dimensions to just 2 cm more than the nominal diameter of the internal smoke duct

Mechanical joint with gasket locking collar, practical and compatible with all De Marinis products.

It can be combined with any type of generator with maximum operating pressure of 200Pa and operating temperatures up to 200 ° C (traditional or condensing gas boilers, pellet stoves and boilers, kitchen and extractor hoods, and so on).

The whole ISOAIR INOX line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

The smoke detection module, required by the UNI 10641 standard, allows the insertion of the test probe for the analysis and control of the smoke temperature and the detection of the combustion efficiency

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with gasket)

Pressure class: P1 (with gasket)

Condensation resistance: W.

Corrosion resistance class: V2 (solid and liquid fuels)

Material type: L50040 / 50 Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel

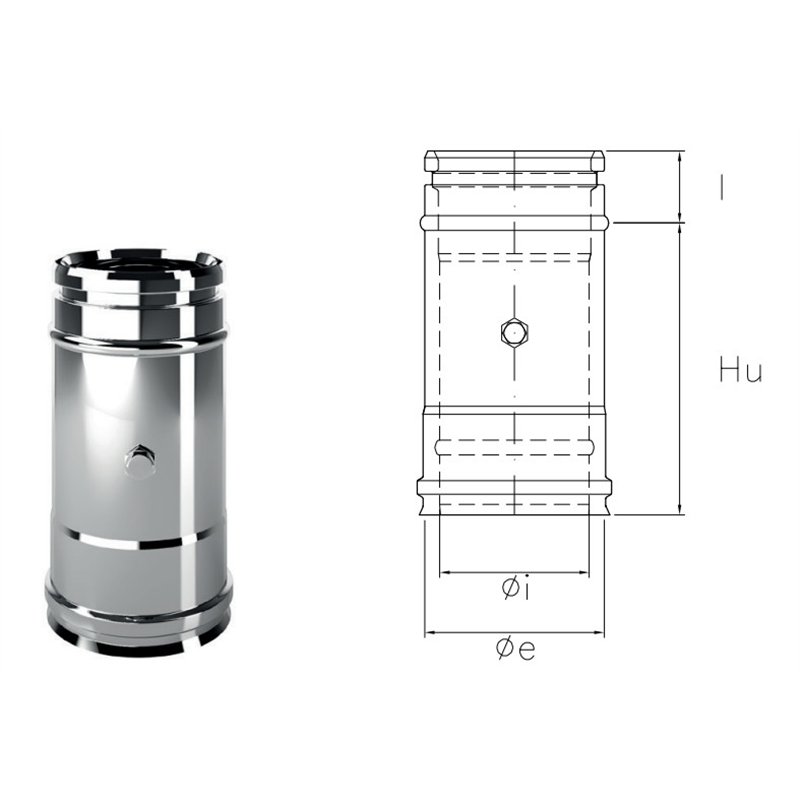

	Cod.	Øi	Øe	Hu	I
Acciaio Inox	IAPF80	80	100	195	45
Acciaio Inox	IAPF100	100	120	195	45
Acciaio Inox	IAPF130	130	150	195	45
Acciaio Inox	IAPF160	160	180	195	45
Acciaio Inox	IAPF180	180	200	195	45
Acciaio Inox	IAPF200	200	220	195	45
Acciaio Inox	IAPF250	250	270	195	45
