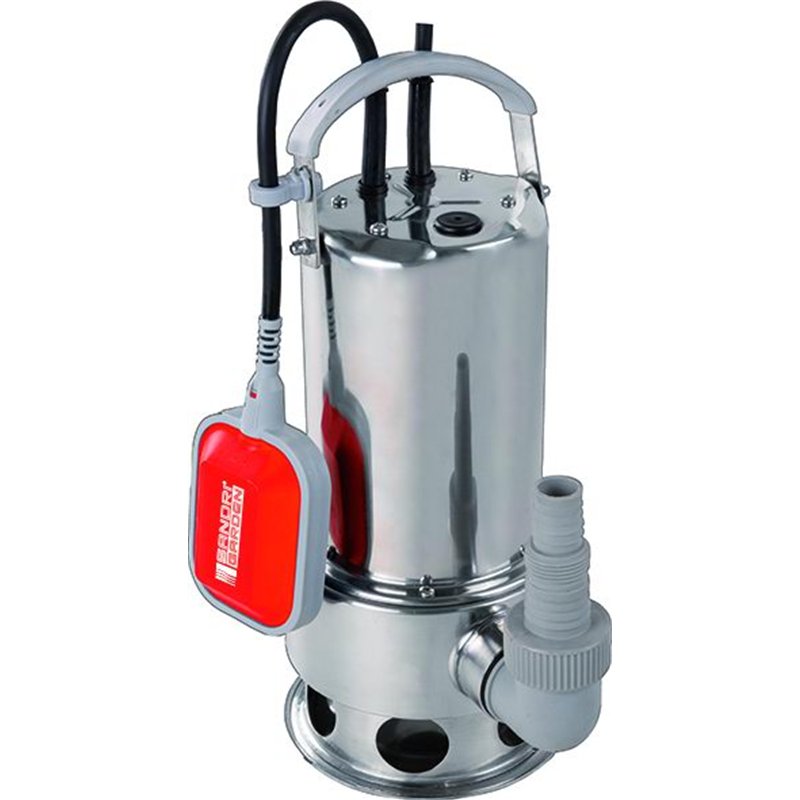

SandriGarden SG-1100/S submersible pump for dirty water

The SandriGarden SG-1100/S is a 1100 W submersible electric pump designed for drainage and pumping of dirty water.

It features a stainless-steel pump body and an external float switch for automatic water-level control.

The maximum declared flow rate is 275 l/min, equivalent to 16,500 l/h, with a maximum head of 10 metres and maximum immersion depth of 7 metres.

Main features

• Type: submersible electric pump
• Application: dirty water
• Power: 1100 W
• Voltage: 230 V
• Pump body: stainless steel
• Maximum flow rate: 275 l/min / 16,500 l/h
• Maximum head: 10 m
• Maximum immersion depth: 7 m
• Maximum solids size: 35 mm
• Float switch: external
• Cable length: 10 m
• Outlet: 1" male

For dirty-water drainage

The SG-1100/S is designed for drainage, emptying and transfer of dirty water containing suspended particles compatible with its declared 35 mm solids passage.

Typical applications may include draining sumps, tanks, flooded areas and other dirty-water collection points, within the operating limits specified by the manufacturer.

Flow rate up to 16,500 litres per hour

The maximum declared flow rate is 275 litres per minute, equivalent to 16,500 litres per hour.

Actual flow rate depends on delivery head, hose diameter and length, pressure losses and installation conditions.

Maximum head of 10 metres

The SandriGarden SG-1100/S provides a declared maximum head of 10 metres.

Maximum head represents the theoretical maximum height to which the pump can lift water; actual flow decreases as delivery head increases.

Handles solids up to 35 mm

The pump is designed to handle dirty water containing suspended particles up to a declared maximum diameter of 35 mm.

It should not be used for abrasive materials, aggressive chemicals or liquids outside the applications specified by the manufacturer.

Stainless-steel body and external float switch

The stainless-steel pump body protects the pump structure during submerged operation.

The external float switch allows automatic starting and stopping according to water level, provided that the float has sufficient space to move freely.

SandriGarden SG-1100/S technical specifications

How to choose a dirty-water submersible pump

The main specifications to consider are required flow rate, delivery head, immersion depth and maximum solids passage.

The SG-1100/S combines a maximum flow rate of 16,500 l/h with up to 10 m head and solids passage up to 35 mm.

Frequently asked questions about the SandriGarden SG-1100/S

Is it suitable for dirty water?

Yes. The SG-1100/S is designed for dirty-water pumping.

What is the maximum flow rate?

The declared maximum flow rate is 275 l/min, equivalent to 16,500 l/h.

What is the maximum head?

The declared maximum head is 10 metres.

What is the maximum immersion depth?

The declared maximum immersion depth is 7 metres.

What size solids can it handle?

The declared maximum solids passage is Ø 35 mm.

Does it have a float switch?

Yes. The pump is equipped with an external float switch for water-level control.

Product code: 75770-20
EAN: 8011779393325

Delivery hose not included. Always check installation requirements and follow the manufacturer's instructions before use.
