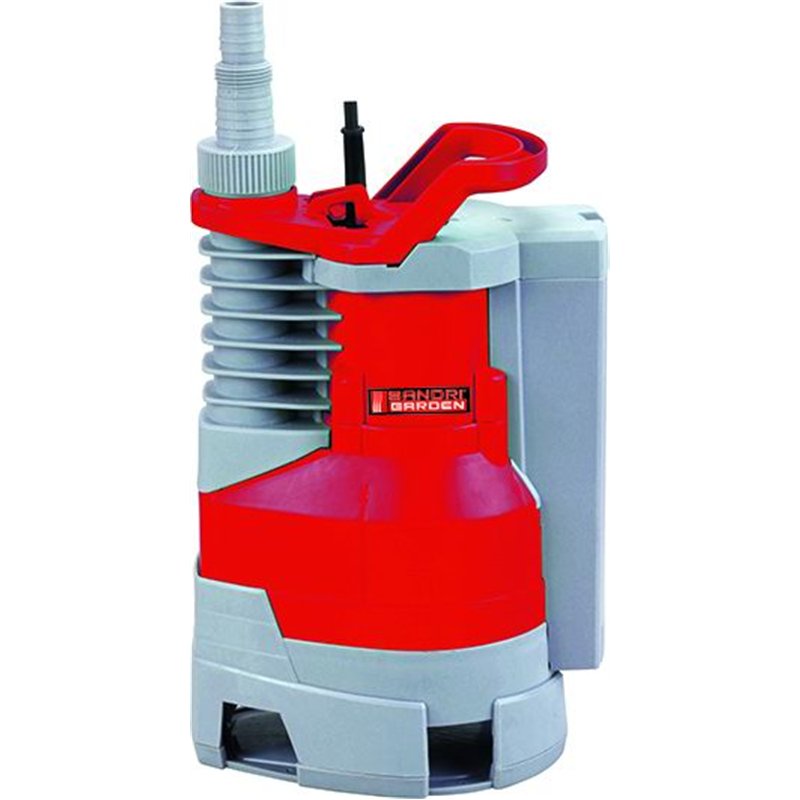

SandriGarden SG-7500/S-G submersible pump for dirty water

The SandriGarden SG-7500/S-G is a 750 W submersible electric pump designed for drainage and removal of dirty water.

It features an integrated float switch and can handle suspended solid particles up to a declared maximum diameter of 35 mm.

The maximum declared flow rate is 225 l/min, equivalent to 13,500 l/h, while maximum head is 8 metres.

Main features

• Type: submersible electric pump
• Application: dirty water
• Power: 750 W
• Voltage: 230 V
• Maximum flow rate: 225 l/min / 13,500 l/h
• Maximum head: 8 m
• Maximum immersion depth: 7 m
• Maximum solids size: 35 mm
• Float switch: integrated
• Cable length: 10 m
• Outlet: 1" male

For dirty-water drainage

The SG-7500/S-G is designed for drainage, emptying and water-transfer operations involving dirty water containing particles compatible with the declared 35 mm passage size.

Typical applications may include draining sumps, tanks, swimming pools and areas affected by water accumulation, within the operating limits specified by the manufacturer.

Flow rate up to 13,500 litres per hour

The pump provides a declared maximum flow rate of 225 litres per minute, equivalent to approximately 13,500 litres per hour.

Actual flow decreases as delivery head increases and may vary according to installation, hose diameter and operating conditions.

Integrated float switch

The float switch is integrated into the pump body, avoiding the external swinging float normally used on many submersible pumps.

This configuration can be particularly useful in spaces where a conventional cable-mounted float has limited room to move.

Handles solids up to 35 mm

The SandriGarden SG-7500/S-G can handle dirty water containing suspended particles up to a declared maximum diameter of 35 mm.

The pump should not be used for abrasive materials, aggressive chemicals or liquids outside the manufacturer's intended applications.

SandriGarden SG-7500/S-G technical specifications

How to choose a dirty-water submersible pump

The main specifications to consider are flow rate, delivery head, immersion depth and maximum solids passage.

The SG-7500/S-G provides a maximum flow rate of 13,500 l/h, up to 8 m head and passage for particles up to 35 mm.

Frequently asked questions about the SandriGarden SG-7500/S-G

Is it suitable for dirty water?

Yes. It is designed for dirty water containing solid particles up to Ø 35 mm.

What is the maximum flow rate?

The declared maximum flow rate is 225 l/min, equivalent to 13,500 l/h.

What is the maximum head?

The declared maximum head is 8 metres.

What is the maximum immersion depth?

The declared maximum immersion depth is 7 metres.

Does it include a float switch?

Yes. The pump features an integrated float switch.

How long is the power cable?

The power cable is 10 metres long.

Product code: 75770-15
EAN: 8011779405301

Delivery hose not included. Always check installation requirements and follow the manufacturer's instructions before use.
