Security cylinder with certified, protected duplication key
MOTTURA C3D 3D KEY
key/adjustable knob

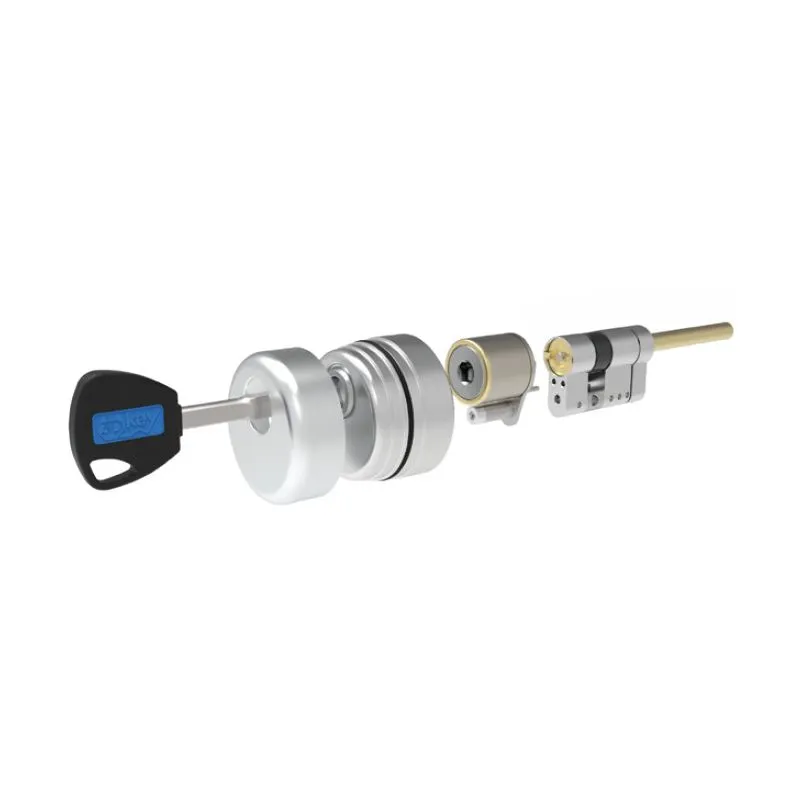

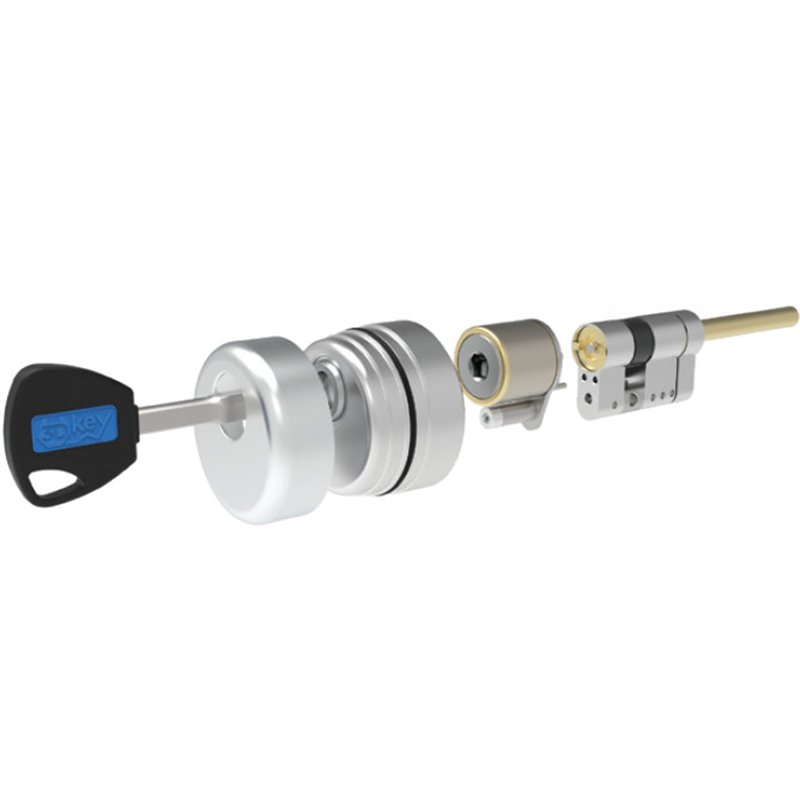

C3D allows you to transform the European profile cylinder lock into a 3Dkey lock without replacing it.
It combines THREE different Mottura security systems: cylinder in key version or adjustable knob with adjustable knob on the internal side, special Defender® complete with 3DKey encrypted body on the external side.

• The 3DKey, an exclusive Mottura patent, is made up of 3 coding surfaces (9 pins) + 2 desmodronic tracks with a particular guide system of the 6 rotating pins free to rotate and without springs. the false anti-probe notches present on the pins themselves and the high number of possible combinations make it extremely difficult to manipulate and decode the cipher but allow it to rotate smoothly and silently.
• Body and rotor equipped with puncture protection devices
• Possibility of choosing the finish and type of Defender® (Basic, adjustable by spring or adjustable by ring nut) to adapt it to the vast majority of applications
• The package includes the entire cylinder unit (with shims if provided) and ownership paper
  5 keys supplied
