Flexible Stainless Steel Flue Pipes – Flexinox De Marinis

Reduced price

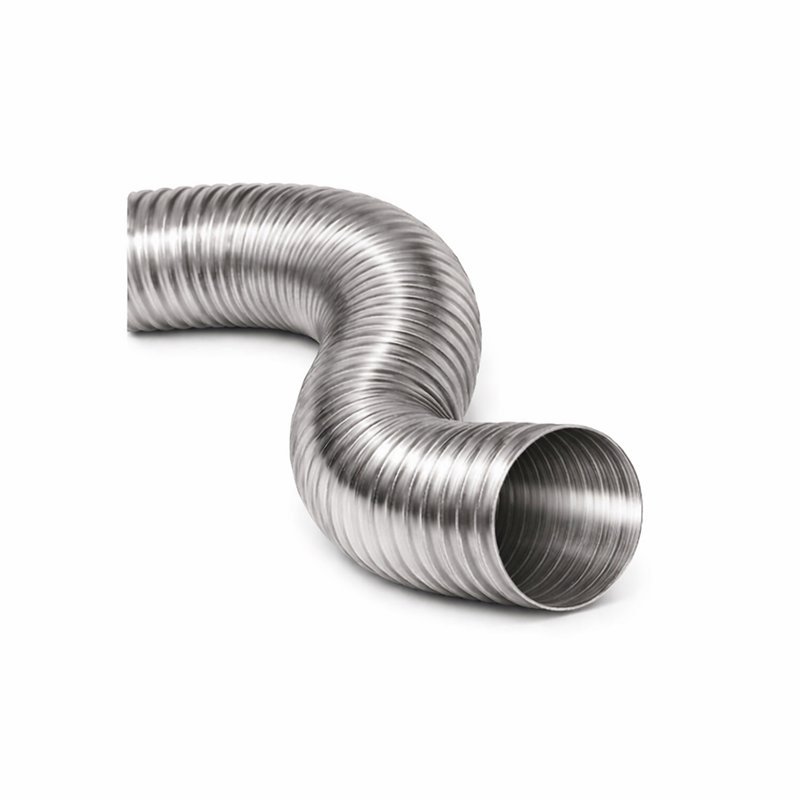

Flexible stainless steel hose for Flex Inox flues

Name: Flexible stainless steel hose for Flex Inox flues
Brand: De Marinis
SKU: TFX
Price: 21.84 EUR
Availability: PreOrder

Reference TFX80

Brand De Marinis

Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

Return policy

(edit with the Customer Reassurance module)

Description

STAINLESS STEEL FLEXIBLE HOSE

DOUBLE WALL WITH SMOOTH INTERIOR

FLEX INOX

Flex Inox is the flexible chimney in stainless steel

It is ideal for the retubations of "difficult" spaces and technical compartments, in which particular movements on the vertical evacuation axis prevent correct execution with the MONO system or the OVAL system.

Suitable for receiving dry fumes in depression up to 600 ° C, produced for example by solid fuel generators (stoves, fireplaces, etc.), or in positive pressure up to 200 Pa and 200 ° C produced for example by natural gas generators or stoves and boiler houses; it consists of a seamed AISI 316 L stainless steel sheet, double wall with smooth interior, certified according to European standard EN1856-2.

Junction fittings with single-wall "male", "female" and silicone gaskets complete the range for a perfect match to every need.

It is used for the evacuation of combustion products, which can be combined with solid, liquid and gaseous fuel generators, disposal of kitchen or domestic or industrial hoods, transport of clean, air-conditioned and non-air-conditioned air, in full compliance with European standards and restrictive laws in force in Italy.

The FLEXINOX flexible system is to be used exclusively for the case studies of technical cavities / compartments, lowering it from top to bottom and scrupulously following the indications and regulatory limits imprinted with inkjet on the product (smoke direction).

The FLEX INOX system is compatible with all De Marinis products, thanks to the wide range of "rigid-flex" fittings for every construction site need.

N.B

This is a technical component whose assembly must be carried out in compliance with EN 1856-2; in particular, the connections with generators and / or rigid pipes must be made using the special sleeves (see the following link); the hose is flexible but NOT extendable

The tube is made from industrial hanks and trimming is required before assembling the sleeves

Designation: Chimney system EN 1856-2: 2009

Temperature class: T200 (with seal) - T600 (without seal)

Pressure class: P1 (with seal) - N1 (without seal)

Condensation resistance: W (with gasket) - D (without gasket)

Corrosion resistance class: V2 (solid and liquid fuels)

Material type and thickness: AISI 316 L BA (DIN 1.4404)

Minimum length available: 1 mtl up to diam. 250mm

Material delivery terms: 1 week

Certification CE

Important note:

The ordered product is obtained from 30mt industrial skeins. in a single piece based on the quantity requested.

SPECIAL ITEM - NOT REFUNDABLE

Product Details

Reference TFX80

Data sheet

System: Flessibile
Component: Linear element
Material: AISI316 stainless steel

Specific References

ean13: 2002001959385
MPN: TFX

Attachments

Download

FLEXINOX technical data sheet

Download (72.57KB)

DOP Flexinox series

Download (117.5KB)
