- Reduced price
Reference: R1TR80
Brand: De Marinis
Tee 90 ° reduced single wall 80mm R1TR ISO10 COPPER Double wall flue
Double wall flue ISO10 COPPER - R1TR De Marinis 90 ° Tee single wall entrance 80mm
No supplier
Double wall flue ISO10 COPPER - R1TE De Marinis Ring hat
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
RING TERMINAL
COPPER FLUE - DOUBLE INSULATED WALL
ISO 10 COPPER SYSTEM
Iso10 COPPER is the double-walled flue system insulated with 10mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in COPPER.
The ideal choice for outdoor installations that combines product quality, efficiency, durability and, above all, reduced dimensions
Mechanical joint with locking collar and possible sealing gasket, practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The whole ISO 10 INOX line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

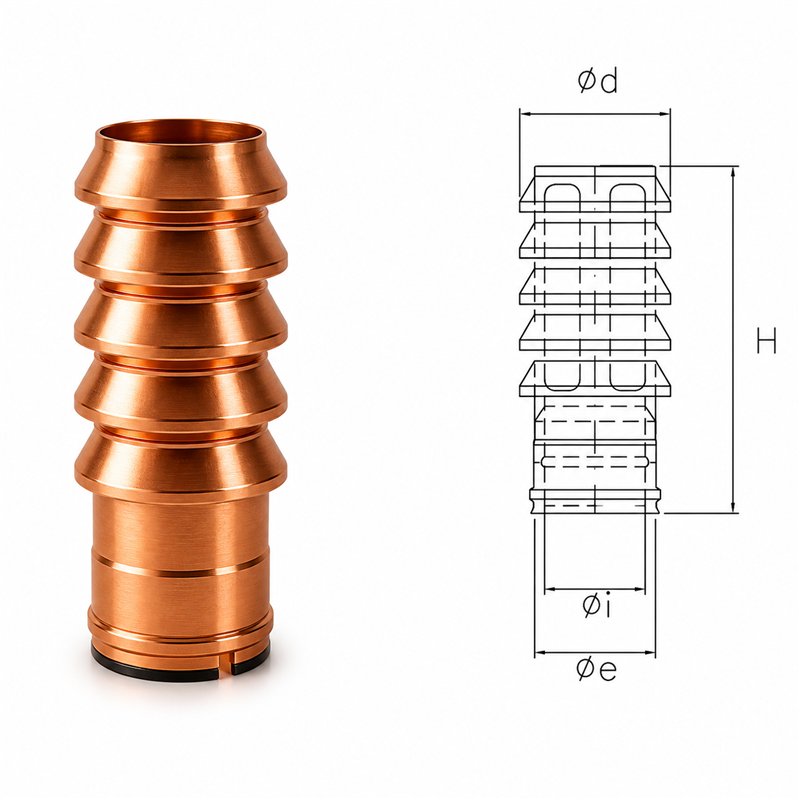

The ring hat is the terminal of the flue with more pleasant aesthetics and functionality comparable to the much more voluminous anti-backflow hat
Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: L50040 Internal wall in Aisi 316 stainless steel th. 0.4- Natural COPPER external wall
Cod. | Øi | Øe | H | Ød | |
---|---|---|---|---|---|
Rame naturale | R1TE80 | 80 | 100 | 325 | 150 |
Rame naturale | R1TE100 | 100 | 120 | 325 | 160 |
Delivery terms: 1 week
Certification: 0476-Kiwa Cermet Italia spa
Warranty: 10 Years
