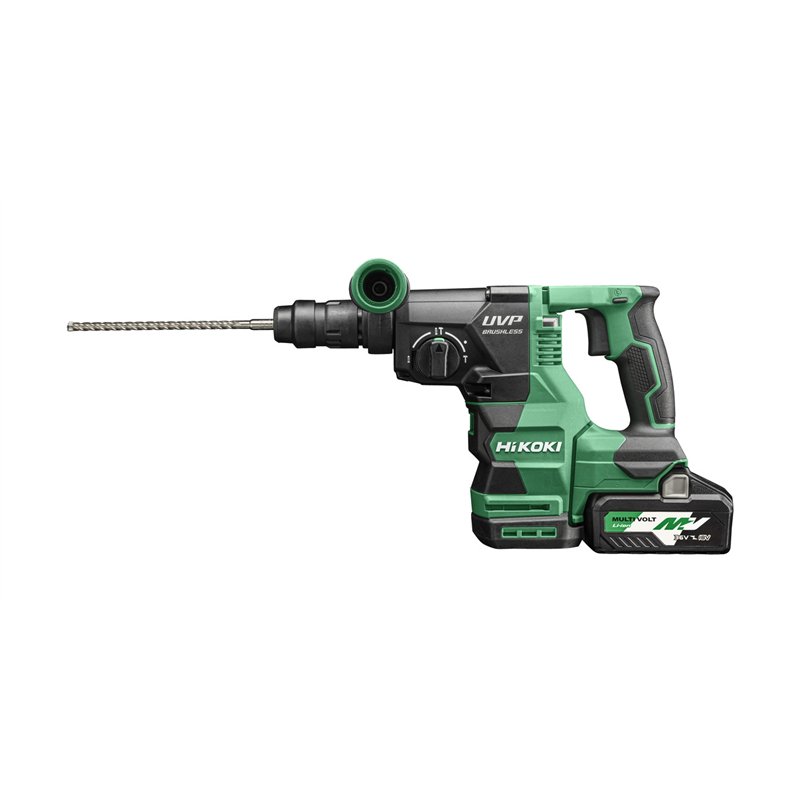

The HiKOKI DH3628DC (MVA) cordless hammer drill is a 36V electropneumatic tool designed for drilling and demolition work. Equipped with a brushless motor and Multi Volt technology, it guarantees high and reliable performance. It offers three working modes: rotation, percussion and a combination of both, with an interchangeable quick-release spindle.
With a single-stroke energy of 3.2 Joules (EPTA), it is ideal for materials such as concrete, steel and wood. It includes advanced systems such as UVP (User Vibration Protection) and LVH (Low Vibration Handle) to reduce vibrations and improve comfort during use. The no-load speed reaches 950 rpm, while the percussion reaches up to 4,300 strokes/min.
It is compact and lightweight, weighing 4 kg (battery included), and has an Auto-Stop function for repeated holes at a fixed depth. Perfect for professionals and intensive work
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Hammer Drill 36 V Multi Volt - Brushless - interchangeable spindle - 2 batteries BSL36B18
Exceptional 36V electro-pneumatic hammer drill Ø 28 mm with SDS-plus attachment, interchangeable quick-fit spindle and 3 working modes. The Autostop system allows repeated holes to be made (on the same material) at a fixed depth and a LED system indicates whether you are working horizontally/vertically and when not. The UVP and LVH anti-vibration systems limit vibrations to a minimum, thus allowing continuous use in compliance with the relevant regulations. The suction system (optional) eliminates dust emissions, allowing use even in protected environments.
TECHNICAL NOTES:
Powerful 36V Brushless motor
- Interchangeable spindle with quick coupling
- LED level for precise 90° holes
- 3.2 Joule energy per single stroke
- Highly reliable pneumatic hammer mechanism
- Safety device that protects against sudden "RFC" blockages
- Mechanical slipping safety clutch
- Auto-Stop function
- UVP active anti-vibration system
- Special "LVH" cushioned handle
- 3 working modes
- Uses the new MV BSL36B18 batteries with charge indicator
- Compatible with the 379139 dust extractor
Applications
High drilling capacity up to a maximum of 28 mm in concrete, 32 mm in wood, 13 mm in steel. Suitable for installing chemical anchors, for example for installing rebar in casting joints.
The quick-release interchangeable spindle makes it perfect for prolonged and repetitive industrial installations that require efficient drilling in reinforced concrete, drilling and assembly on metal and wood.
By blocking the rotation, light chiselling can be performed, such as small surface corrections, removal of tiles, cleaning of grooves.
| Attacco | SDS-plus |
| Ø foro nel calcestruzzo | 28 mm |
| Ø foro nel calcestruzzo con punta corona | 50 mm |
| Ø foro nel legno | 32 mm |
| Ø foro nell'acciaio | 13 mm |
| Velocità a vuoto | 0 - 700 / 950 giri/min. |
| Percussioni a pieno carico | 0 - 3.170 / 4.300 colpi/min. |
| Energia per singolo colpo (EPTA) | 3.2 Joule |
| Modello batteria | BSL36B18 MultiVolt |
| Dati tipici batteria | 36V - 4 Ah / 18V - 8 Ah |
| Caricabatterie | UC18YSL3 |
| Lunghezza | 389mm |
| Peso (con batteria BSL36A18) | 4 Kg |
| Codice articolo | DH3628DCWV |
| Codice EAN | - |
| Accessori in dotazione | 2 batterie - caricabatteria - protezione batteria – impugnatura laterale - delimitatore di profondità - valigetta stackable |
