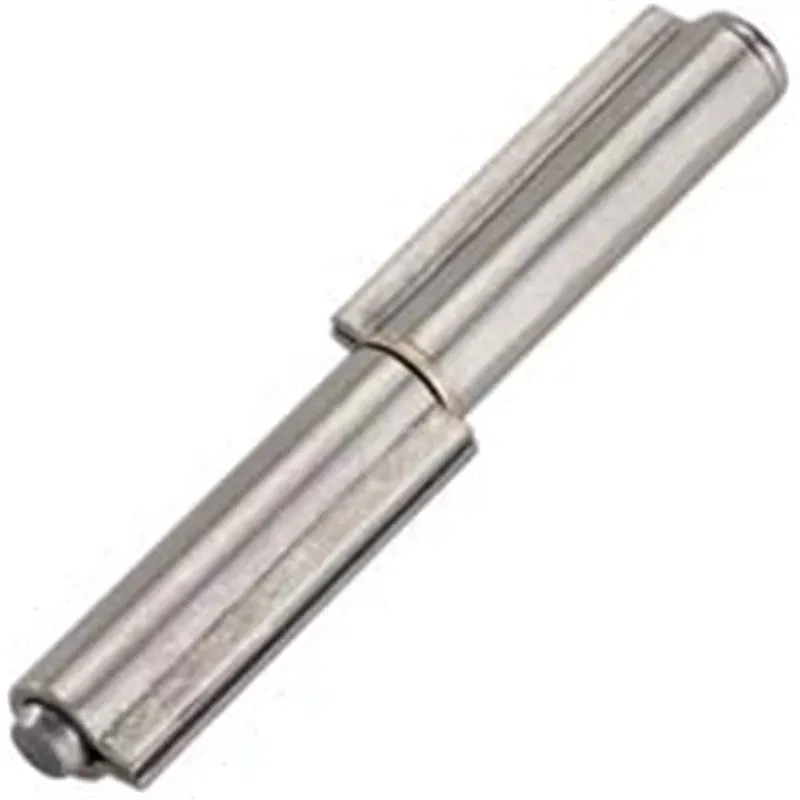

2-wing hinge to be welded, removable pin, art.100 COMBI
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
WELDING HINGE
2-WING TYPE REMOVABLE PIN
Ambidextrous type, with narrow wings
in polished steel
removable pin
| mm. | A | C | sp | ØD | E | L | S |
|---|---|---|---|---|---|---|---|
| 60 | 27 | 8.5 | 2 | Ø6 | 4.5 | 61 | 2 |
| 80 | 36 | 10 | 2 | Ø8 | 4.5 | 80 | 2 |
| 100 | 46 | 11.5 | 2 | Ø9 | 4.5 | 100 | 2 |
| 120 | 56 | 12 | 2.3 | Ø10 | 5 | 121 | 2 |
| 140 | 66 | 13 | 2.5 | Ø11 | 5.5 | 142 | 2 |
| 170P | 81 | 15 | 2.7 | Ø12 | 6 | 171 | 2.2 |
| 200P | 96 | 17 | 3 | Ø14 | 6.5 | 202 | 2.3 |
