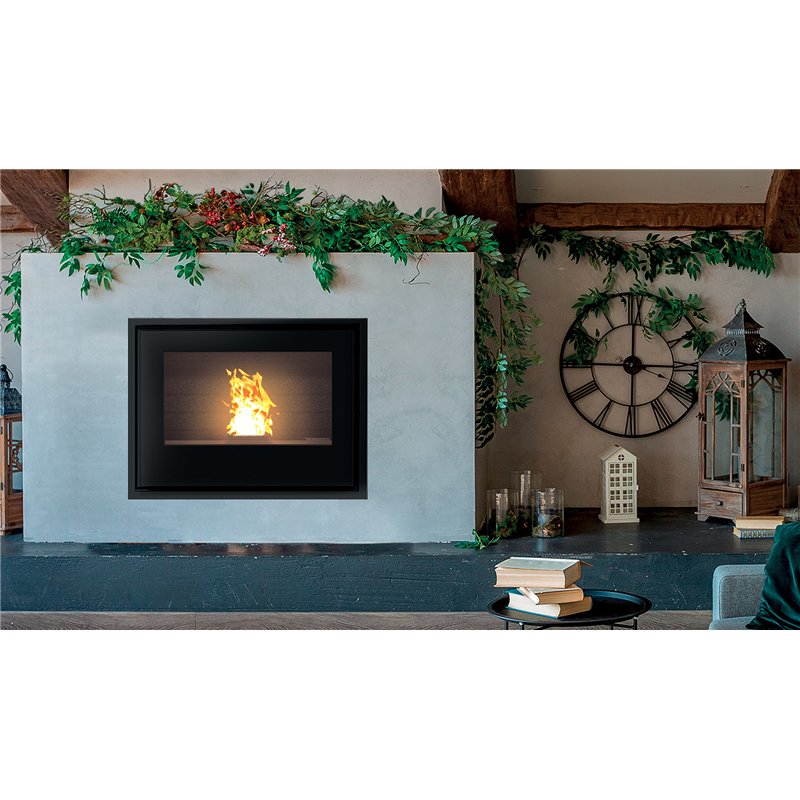

ESPRIT 490 pellet fireplace insert

The Thermorossi Esprit 490 pellet fireplace insert is a versatile and high-performance solution for those who want to heat rooms with a pellet system.

Design and Materials: The Esprit 490 is made with a robotic production process, using certified materials and high thicknesses. Its structure complies with the most restrictive European regulations. The combustion chamber and hearth door are made of cast iron, while the silk-screened glass offers a clear view of the fire.
Pelletpower® Self-Cleaning Burner: The burner can be inspected, dismantled and removed by the user. Made of Incoloy 800 HT alloy and cast iron, it is even more resistant. Thanks to Pelletpower® technology, the ashes are collected at the sides and the burner ensures constant yields without interruptions.
Efficiency and Cleanliness: The Thermocore shell and tube heat exchanger offers an exchange surface increased by 40%. The glow plug is durable and low energy consumption. The motors are silenced and the room fan is dust-tight, guaranteed for 4 years. Ordinary and extraordinary cleaning is simplified.
Advanced Features: The Esprit 490 is ductable with a control for air distribution from the front to the rear. The capacity of the tank is 12.5 kg. Other features include the safety thermostat, the tank protection probe, the LCD digital panel, the weekly timer with 3 independent programming and the provision for wi-fi technology.
Safety and Ease of Use: The mechanical pressure switch guarantees safety, while the removable handle and pressure relief valve simplify use. The sliding guides allow easy access for extraordinary cleaning of the integrated ash collector. The fume exhaust has a bayonet coupling and a mechanical and electrical safety device to unlock the insert when loading the pellets.
5 star certification: 5 star certified wood stoves are able to burn wood more completely and efficiently, minimizing the release of pollutants into the air. The 5 star certification is an important attribute of quality and sustainability for wood stoves, guaranteeing high performance and low environmental impact

The Esprit 490 is a high quality pellet insert, ideal for those who want to renovate an existing fireplace and enjoy comfort and energy savings

DIMENSIONI (HXLXP)	490X667X450
PESO (KG)	95
AREA RISCALDABILE (M²)	95
RENDIMENTO MAX	94,1 %
POTENZA AL FOCOLARE (KW)	2,8 - 11,3
POTENZA NOMINALE (KW)	2,6 - 10,5
CAPACITA' SERBATOIO KG	12,5
CONSUMO ORARIO PELLET (KG/H)	0,6 - 2,34
VENTILAZIONE AMBIENTE	SI
CANALIZZAZIONE	SI
ARIA PRIMARIA DA ESTERNO	SI
RUMOROSITA'	36 DB
ASSORBIMENTO ELETTRICO	70-270 W
EMISSIONI CO (MG/M³; 13% DI O2)	92
EMISSIONI POLVERI (MG/M³; 13% DI O2)	13
DIAMETRO USCITA FUMI (MM)	80
TIRAGGIO MINIMO RICHIESTO (PA)	-10
TIRAGGIO MINIMO PER CALCOLI DIMENSIONAMENTO CANNA FUMARIA (PA)	-5





Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
