Base plate with central outlet I1PPC ISO10 INOX Double wall flue

Name: Base plate with central outlet I1PPC ISO10 INOX Double wall flue
Brand: De Marinis
SKU: I1PPC
Price: 93.72 EUR
Availability: PreOrder

Reference I1PPC80

Brand De Marinis

Double wall flue ISO10 INOX - I1PPC De Marinis - Base plate with central condensate drain

TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

ORDERS PREPARED WITH CARE

We prepare every order with care

Description
Product Details

Description

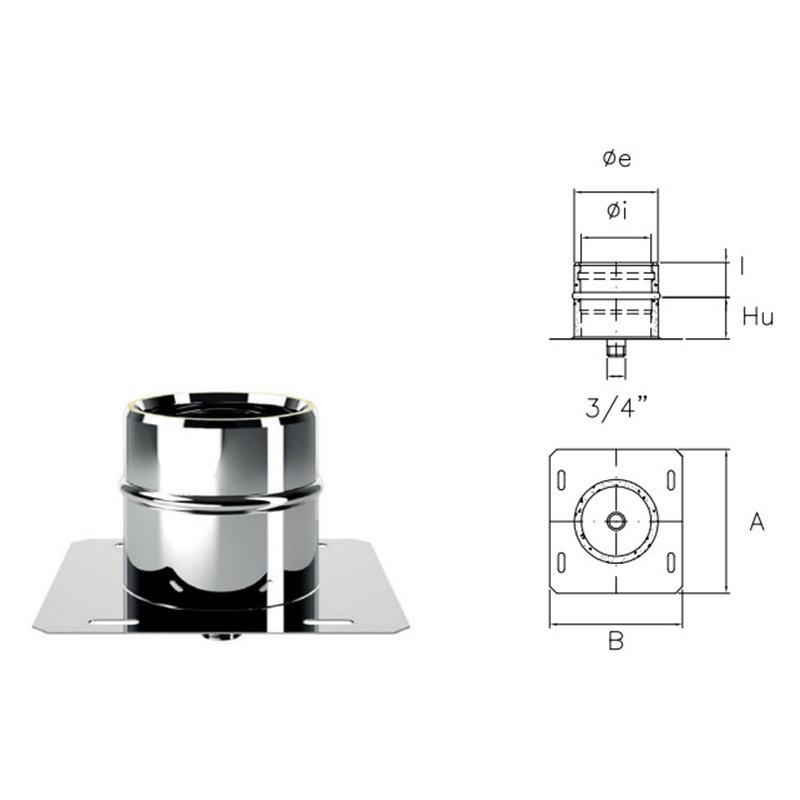

BASE PLATE WITH CENTRAL CONDENSATE DRAIN

STAINLESS STEEL FLUE - DOUBLE WALL

ISO10 STAINLESS STEEL SYSTEM

Iso10 INOX is the double wall flue system insulated with 10mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency, durability and, above all, reduced dimensions

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.

It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).

The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The base plate, installed on the ground or via support fins art. DEM.CUCP or DEM.CUCPC, allows the flue to be supported. It is equipped with a 3/4 "female threaded connection for the central condensate drain. Especially suitable for combination with condensing generators

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with gasket) - T600 (without gasket)

Pressure class: P1 (with gasket) - N1 (without gasket)

Condensation resistance: W (with gasket) - D (without gasket)

Corrosion resistance class: V2 (solid and liquid fuels)

Material type: Aisi 316 stainless steel internal wall - Aisi 304BA stainless steel external wall
